F0CLCT-08004120-05
Download page

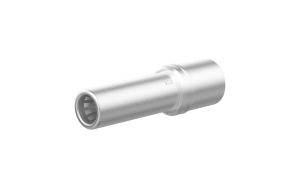

Crown lamella socket, ∅8, Silver plated, 3μm (50mm²)
Product Number:
F0CLCT-08004120-05
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
Contact Connector
Product Category
Crown lamella socket
Number of Positions
1Circuit
Diameter (mm)
∅8
Orientation
Vertical(180°)
Electrical
Current(Max)
200A
Contact Resistance
0.11 mΩ Max
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Riveting
Material
Material-Contact
Beryllium copper
Plating
Silver plated
Plating Thickness
3μm
Packaging
Packaging
PE Bag
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$7.666285
10+
$7.257137
50+
$6.438843
100+
$6.029696
500+
$5.211401
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 4
MOQ: 200

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ isCn?'¥':'$'}}{{ isCn?product.price:product.usdPrice}}
Total prices: {{ isCn?'¥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}
Lead time: In stock {{product.leadDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
F0CLCT-08004120-05
Crown lamella socket, ∅8, Silver plated, 3μm (50mm²)
MPQ: 4
MOQ: 200

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
