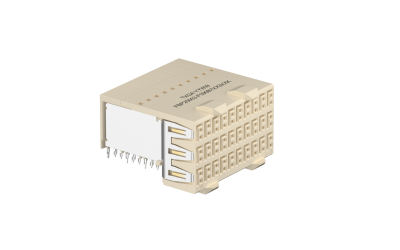

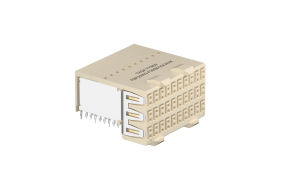

FBP25003-F090B7003NAK Backplane connector, 2.5mm, Female, 3pair, 10cols, 60SIG+30GND, Right angle(90°), Press-fit, 6.25Gbps

FBP25003-F090B7003NAK

Download page

After clicking download, select "Save as PDF" in the printer options.

Backplane connector, 2.5mm, Female, 3pair, 10cols, 60SIG+30GND, Right angle(90°), Press-fit, 6.25Gbps

Product Number：

FBP25003-F090B7003NAK

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Backplane Connector

Product Category

High speed Backplane connector

Gender

Female

Pitch

2.5mm

Row Option

6 rows

Number of Positions

90Circuits

Orientation

Right angle(90°)

Colour

Natural

Electrical

Current(Max)

0.7A

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

10000 MΩ Min

Withstanding Voltage

650V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Data Rate

6.25Gbps

Mechanical

Mounting Style

Press-fit

Durability (Mating Cycles Max.)

250

Material

Material-Contact

Copper alloy

Plating

Gold on contact, matte tin on tail

Plating Thickness

Gold flash

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Tray

{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FBP25004-M090S7003NAK

Backplane connector, 2.5mm, Male, 3pair, 10cols, 60SIG+30GND, Vertical(180°), Press-fit, 6.25Gbps
