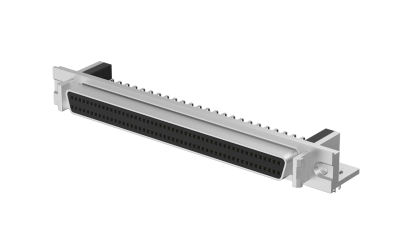

FCS10007-F0DB300K6LB SCSI Connector, 100Circuits, Female, Right angle(90°), Through hole, Gold flash, Versa needle

FCS10007-F0DB300K6LB

Download page

SCSI Connector, 100Circuits, Female, Right angle(90°), Through hole, Gold flash, Versa needle

Product Number：

FCS10007-F0DB300K6LB

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

SCSI Connector

Product Category

SCSI Connector

Style

Socket

Gender

Female

Type

Type B

Pitch

1.27mm

Number of Positions

100Circuits

Orientation

Right angle(90°)

Colour

Black

Electrical

Current(Max)

Voltage(Max)

250V

Contact Resistance

35 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

Through hole

Material

Material-Contact

Copper alloy

Plating

Gold on contact, bright tin on tail

Plating Thickness

Gold flash

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Tube

{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FCS10012-M0WS300K6K

SCSI Connector 100Circuit, Male, Welding, Gold flash

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
