FDI2401-F0DB300W1K-C
Download page

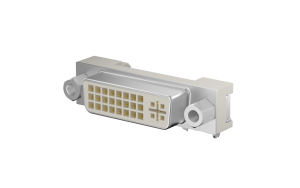

DVI Female (24+5)Pin DIP 90° White
Product Number:
FDI2401-F0DB300W1K-C
Status:
Active
Category
Product Catalog
Connectors
Product System
Audio/Video Connector
Product Category
DVI
Style
Socket
Gender
Female
Type
Type C
Number of Positions
29Circuits
Orientation
Right angle(90°)
Colour
White
Electrical
Current(Max)
1.5A
Voltage(Max)
250V
Contact Resistance
30 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{3.474269 | tradeCurrencySymbol}}
10+
{{3.276686 | tradeCurrencySymbol}}
50+
{{2.881519 | tradeCurrencySymbol}}
100+
{{2.683936 | tradeCurrencySymbol}}
500+
{{2.288771 | tradeCurrencySymbol}}
stock 73 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 50
MOQ: 5000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ product.price|tradeCurrencySymbol}}
Total prices: {{ product.subTotal|tradeCurrencySymbol}}
Lead time: In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FDI2401-F0DB300W1K-C
DVI Female (24+5)Pin DIP 90° White
MPQ: 50
MOQ: 5000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
