FDM2626-M0DS101WHKA
Download page
Machined pin D-SUB 26Circuits, Male, 180° Vertical(DIP), 0.025μm
Product Number:
FDM2626-M0DS101WHKA
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
D-Sub Connector
Product Category
Machined pin D-SUB
Style
Socket
Gender
Male
Type
Type A
Row Option
3 rows
Number of Positions
26Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
5A
Voltage(Max)
300V
Contact Resistance
30 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

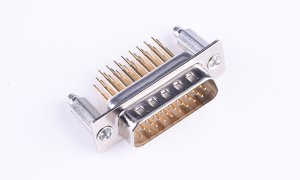

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$3.493530
10+
$3.303794
50+
$2.924322
100+
$2.734586
500+
$2.355114
stock 302 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 70
MOQ: 560

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
