Where you are： TXGA Products D-Sub Connector FDM4411-M0 FDM4411-M0WS110W1K
FDM4411-M0WS110W1K
Download page

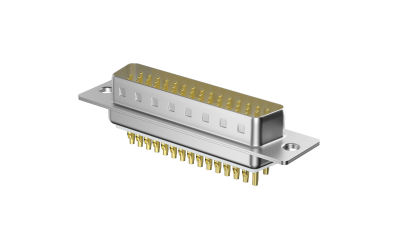

Machined pin D-SUB Male 44Circuits(10μ'')
Product Number：
FDM4411-M0WS110W1K
Status：
Active
Product Introduction Data Download Product Compliance Compatible Parts
Category
Product Catalog
Connectors
Product System
D-Sub Connector
Product Category
Machined pin D-SUB
Style
Plug
Gender
Male
Row Option
3 rows
Number of Positions
44Circuits
Orientation
Vertical(180°)
Colour
White
 Electrical
Current(Max)
5A
Voltage(Max)
300V
Contact Resistance
30 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
 Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.25μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tray
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
D-Sub Connector
Product Category
Machined pin D-SUB
Style
Plug
Gender
Male
Row Option
3 rows
Number of Positions
44Circuits
Orientation
Vertical(180°)
Colour
White

Electrical

Current(Max)
5A
Voltage(Max)
300V
Contact Resistance
30 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC

Mechanical

Waterproof / Dustproof
No
Mounting Style
Soldering

Material

Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.25μm
Material-Resin
PBT
Flammability Rating
UL94 V-0

Packaging

Packaging
Tray

Data Download

Product Drawings

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Compatible Parts

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
