Where you are： TXGA Products FPC/FFC Connector FFC05018 FFC05018-30SBD214W5M

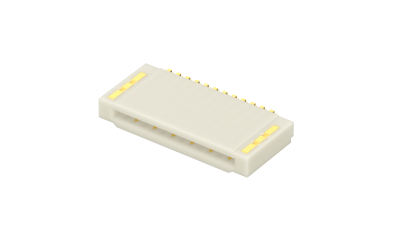

FFC05018-30SBD214W5M
Download page
FPC/FFC connector 0.5mm Double Contact 30Circuits(H1.2)(SMT)
Product Number：
FFC05018-30SBD214W5M
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.5mm
Number of Positions
30Circuits
Contact Mating Location
Double contact
Height(mm)
H1.25
Orientation
Right angle(90°)
Colour
Natural
 Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
 Mechanical
ZIF
Non-ZIF
Mounting Style
SMT
 Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
 Packaging
Packaging
Reel
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Phone Email
{{maskPhone(inquiryForm.phone)}}
{{maskEmail(inquiryForm.email)}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FFC05018-30SBD214W5M
FPC/FFC connector 0.5mm Double Contact 30Circuits(H1.2)(SMT)
MPQ： 3000
MOQ： 3000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
