Where you are： TXGA Products FPC/FFC Connector FFC05046 FFC05046-26SBB113NAM
FFC05046-26SBB113NAM
Download page

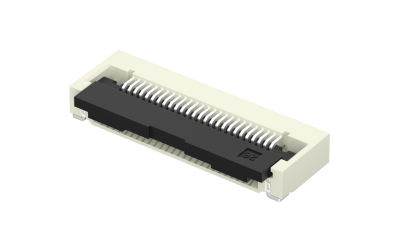

FPC/FFC Connector, 0.5mm, 26 Circuits, Right angle(90°), SMT, Bottom contact , Front flip, H2.55
Product Number：
FFC05046-26SBB113NAM
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.5mm
Number of Positions
26Circuits
Contact Mating Location
Bottom contact
Height(mm)
H2.55
Orientation
Right angle(90°)
Colour
Natural
 Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
50 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
150V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
ZIF
ZIF
ZIF Style
Front flip
Mounting Style
SMT
 Material
Material-Contact
Copper alloy
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
 Packaging
Packaging
Reel
