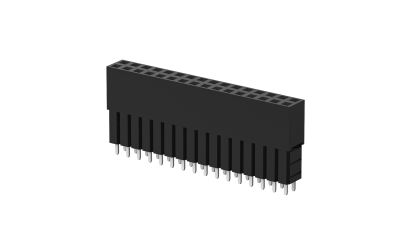

FFH25451-D40S1014K6K Female Header, 2.54mm, Dual row, 40Circuits, Vertical(180°), Through hole, 0.025μm, PA6T, H15

FFH25451-D40S1014K6K

Download page

Female Header, 2.54mm, Dual row, 40Circuits, Vertical(180°), Through hole, 0.025μm, PA6T, H15

Product Number：

FFH25451-D40S1014K6K

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Pin Header/Female Header

Product Category

Female Header

Style

Socket

Pitch

2.54mm

Row Option

Dual row

Number of Positions

40Circuits

Height(mm)

H15

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

Through hole

Material

Material-Contact

Brass

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

PA6T

Flammability Rating

UL94 V-0

Packaging

Tray

{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FPH25452-D40S1014190740B

Pin Header 2.54mm, Double row, 40Circuits, 180° Vertical(DIP), 1μ", PA6T

FPH25461-D40B1014191107B

Pin Header 2.54mm, Double row, 40Circuits, 90° Angle(DIP), 1μ", PA6T

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
