FHM45002-F0081GY00

Download page

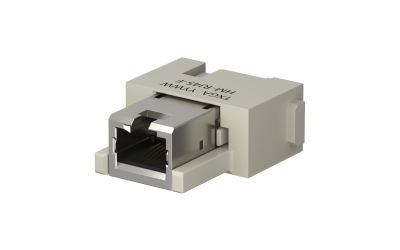

Heavy-duty connector, HM-RJ45 modular insert, Female

Product Number：

FHM45002-F0081GY00

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Heavy-duty Connector (Rectangle)

Product Category

Heavy-duty connector

Product series

HM

Style

Socket

Gender

Female

Row Option

Single row

Number of Positions

8Circuits

Colour

Gray

Applicable wires (AWG Max.)

N/A

Applicable wires (mm² Max.)

N/A

Electrical

Current(Max)

1A

Voltage(Max)

50V

Contact Resistance

20 mΩ Max

Insulation Resistance

10000 MΩ Min

Operating Temperature Range

-40ºC~+85ºC

Rated impulse voltage

0.8KV

Mechanical

Durability (Mating Cycles Max.)

500

Material

Material-Contact

Copper alloy

Plating

Gold plated

Material-Resin

PC

Flammability Rating

UL94 V-2

Packaging

Packaging

PE Bag

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FHM45001-M0000GY00

Heavy-duty connector, HM-RJ45 modular insert, Male

Assemblies

Heavy-duty connector， HF24B Frame， No. of module: 6

Heavy-duty connector， HF24B Frame， No. of module: 6

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$15.501428

10+

$14.463676

50+

$12.647609

100+

$11.544997

500+

$10.118087

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 5

MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
