FHDF001-10GY0

Download page

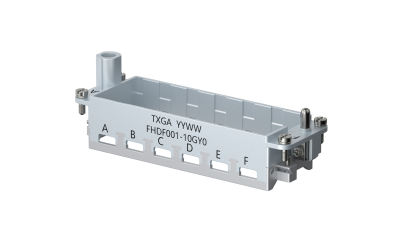

Heavy-duty connector， HF24B Frame， No. of module: 6

Product Number：

FHDF001-10GY0

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Heavy-duty Connector (Rectangle)

Product Category

Heavy-duty connector

Style

Fittings

Colour

Gray

Electrical

Operating Temperature Range

-40ºC~+125ºC

Material

Material Type

Zinc alloy

Packaging

Packaging

PE Bag

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FH2MK001-M0024GYE0

Heavy-duty connector, H2MK insert, Male, 2 Circuits, 100A, silver plated, Screw locking

FH2MK002-F0024GYE0

Heavy-duty connector, H2MK insert, Female, 2Circuits, 100A, silver plated, Screw locking

FHM45001-M0000GY00

Heavy-duty connector, HM-RJ45 modular insert, Male

FHM45002-F0081GY00

Heavy-duty connector, HM-RJ45 modular insert, Female

FHMD0001-M0120GY00

Heavy-duty connector, HMD insert, Male, 12 Circuits

FHMD0002-F0120GY00

Heavy-duty connector, HMD insert, Female, 12 Circuits

FHMK0001-M0040GY00

Heavy-duty connector, HMK insert, Male, 4 Circuits

FHMK0002-F0040GY00

Heavy-duty connector, HMK insert, Female, 4 Circuits

FHMP0001-00030BU00

Heavy-duty connector，HMP Pneumatic insert，3 Circuits

Assembly shell

FH24BB01-SM320GY0

Heavy-duty connector, H24B Base shell, Side cable entry, M32, Al-alloy, Gray, IP65

FH24BB02-B0000GY0

Heavy-duty connector, H24B Base shell, Bottom cable entry, Al-alloy, Gray, IP65

FH24BH01-TM320GY0

Heavy-duty connector, H24B Hood, Top cable entry, M32, Al-alloy, Gray, IP65

FH24BH02-SM320GY0

Heavy-duty connector, H24B Hood, Side cable entry, M32, Al-alloy, Gray, IP65

Assemblies

Heavy-duty connector， HF24B Frame， No. of module: 6

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$19.270648

10+

$17.969676

50+

$15.692975

100+

$14.392003

500+

$12.603167

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 1

MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}

Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}

Lead time： In stock {{product.leadDate}}
