FHMK0002-F0040GY00

Download page

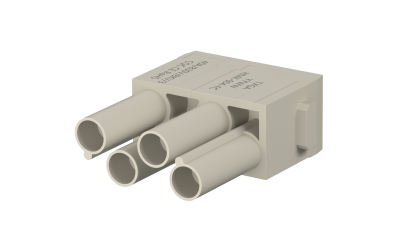

Heavy-duty connector, HMK insert, Female, 4 Circuits

Product Number：

FHMK0002-F0040GY00

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Heavy-duty Connector (Rectangle)

Product Category

Heavy-duty connector

Product series

HM

Style

Housing

Gender

Female

Row Option

Dual row

Number of Positions

4Circuits

Colour

Gray

Applicable wires (AWG Max.)

10AWG

Applicable wires (mm² Max.)

6mm²

Electrical

Current(Max)

40A

Voltage(Max)

830V

Contact Resistance

3 mΩ Max

Insulation Resistance

10000 MΩ Min

Operating Temperature Range

-40ºC~+125ºC

Rated impulse voltage

8KV

Mechanical

Durability (Mating Cycles Max.)

500

Material

Plating

No

Material-Resin

PC

Flammability Rating

UL94 V-0

Packaging

Packaging

PE Bag

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Terminal

FTH004-0400F4E0

Crimp contact, 40A, Wire range 1.5mm²(16 AWG), Female, Silver plated

FTH004-0400F4F0

Crimp contact, 40A, Wire range 2.5mm²(14 AWG), Female, Silver plated

Plug

FHMK0001-M0040GY00

Heavy-duty connector, HMK insert, Male, 4 Circuits

Assemblies

Heavy-duty connector， HF24B Frame， No. of module: 6

Heavy-duty connector， HF24B Frame， No. of module: 6

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$4.968522

10+

$4.725166

50+

$4.015377

100+

$3.670623

500+

$3.224470

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 5

MOQ： 50
