FTH004-0400F4F0
Download page

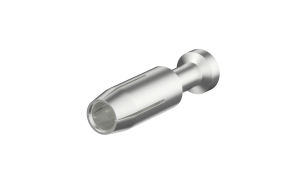

Crimp contact, 40A, Wire range 2.5mm²(14 AWG), Female, Silver plated
Product Number:
FTH004-0400F4F0
Status:
Active
Category
Product Catalog
Connectors
Product System
Heavy-duty Connector (Rectangle)
Product Category
Heavy-duty connector
Style
Terminal
Gender
Female
Applicable wires (AWG Max.)
14AWG
Applicable wires (mm² Max.)
2.5mm²
Electrical
Current(Max)
40A
Contact Resistance
1 mΩ Max
Operating Temperature Range
-40ºC~+125ºC
Mechanical
Mounting Style
Riveting
Durability (Mating Cycles Max.)
500
Material
Material-Contact
Copper alloy
Plating
Silver plated
Plating Thickness
3μm
Packaging
Packaging
PE Bag
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$0.843272
10+
$0.807595
50+
$0.684348
100+
$0.632454
500+
$0.548127
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 100
MOQ: 100

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ isCn?'¥':'$'}}{{ isCn?product.price:product.usdPrice}}
Total prices: {{ isCn?'¥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}
Lead time: In stock {{product.leadDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FTH004-0400F4F0
Crimp contact, 40A, Wire range 2.5mm²(14 AWG), Female, Silver plated
MPQ: 100
MOQ: 100

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
