FHMD0001-M0120GY00

Download page

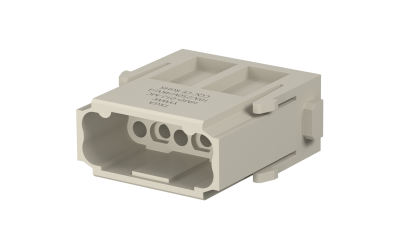

Heavy-duty connector, HMD insert, Male, 12 Circuits

Product Number：

FHMD0001-M0120GY00

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Heavy-duty Connector (Rectangle)

Product Category

Heavy-duty connector

Product series

HMD

Style

Housing

Gender

Male

Row Option

Dual row

Number of Positions

12Circuits

Colour

Gray

Applicable wires (AWG Max.)

14AWG

Applicable wires (mm² Max.)

2.5mm²

Electrical

Current(Max)

10A

Voltage(Max)

250V

Contact Resistance

3 mΩ Max

Insulation Resistance

10000 MΩ Min

Operating Temperature Range

-40ºC~+125ºC

Rated impulse voltage

4KV

Mechanical

Durability (Mating Cycles Max.)

500

Material

Plating

No

Material-Resin

PC

Flammability Rating

UL94 V-0

Packaging

Packaging

PE Bag

{{item.nameEn}}

{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Terminal

FTH001-0100M4B0

Crimp contact, 10A, Wire range 0.5mm²(20 AWG), Male, Silver plated

Plug

FHMD0002-F0120GY00

Heavy-duty connector, HMD insert, Female, 12 Circuits

Assemblies

Heavy-duty connector， HF24B Frame， No. of module: 6

Heavy-duty connector， HF24B Frame， No. of module: 6
