FID25402-603K6K
Download page

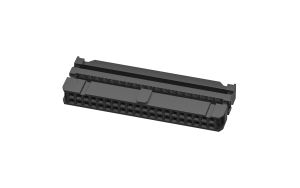

IDC 2.54mm 60Circuits(3 Assemblies)
Product Number:
FID25402-603K6K
Status:
Active
Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
IDC Connector
Style
Plug
Pitch
2.54mm
Row Option
Dual row
Number of Positions
60Circuits
Assemblies
3 Assemblies
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
IDC
Material
Material-Contact
Brass
Plating
Nickel plated
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{3.106015 | tradeCurrencySymbol}}
10+
{{2.69598 | tradeCurrencySymbol}}
50+
{{2.244941 | tradeCurrencySymbol}}
100+
{{2.080927 | tradeCurrencySymbol}}
500+
{{1.804154 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ product.price|tradeCurrencySymbol}}
Total prices: {{ product.subTotal|tradeCurrencySymbol}}
Lead time: In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
