Where you are： TXGA → Products → M12 Circular Connector → FM12WT1106-A → FM12WT1106-A12P103020000
FM12WT1106-A12P103020000
Download page

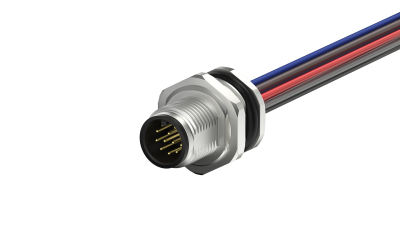

M12 male socket, unshielded, with wire L=200mm, IP68, M16X1.5, front lock, A-code , 12 cores
Product Number：
FM12WT1106-A12P103020000
Status：
Active
Data Download Product Introduction Product Compliance
{{item.nameEn}}
{{file.fileName}}
Category
Product Catalog
Connectors
Product System
M12 Circular Connector
Style
Cable assembly
Coding
A coding
Number of Positions
12Circuits
Cable Length(mm)
L=200mm
 Electrical
Current(Max)
1.5A
Voltage(Max)
30V
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Phone Email
{{maskPhone(inquiryForm.phone)}}
{{maskEmail(inquiryForm.email)}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FM12WT1106-A12P103020000
M12 male socket, unshielded, with wire L=200mm, IP68, M16X1.5, front lock, A-code , 12 cores
MPQ： 50
MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
