FM205001-F67B1003BKMB
Download page
M.2, 0.5mm, Female, 67Circuits, Right angle(90°), SMT, Black, B Key, H3.2mm
Product Number:
FM205001-F67B1003BKMB
Status:
Active
Category
Product Catalog
Connectors
Product System
Memory Module Socket
Product Category
M.2
Style
Socket
Gender
Female
Type
Type B
Version
Gen 4
Pitch
0.5mm
Number of Positions
67Circuits
Height(mm)
H3.2
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
55 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
300V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

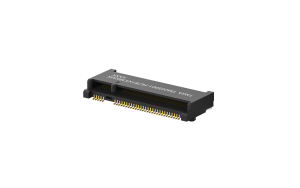

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{3.147466 | tradeCurrencySymbol}}
10+
{{2.657628 | tradeCurrencySymbol}}
50+
{{2.3137 | tradeCurrencySymbol}}
100+
{{2.157369 | tradeCurrencySymbol}}
500+
{{1.823863 | tradeCurrencySymbol}}
stock 628 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 900
MOQ: 5400

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
