FM8C020401-A02R0200000

Download page

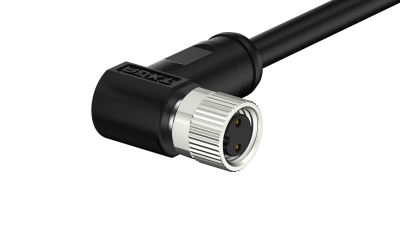

M8X1.0 A Coded 2pin, female right angle single end, shield , PUR, cable length L=2M

Product Number：

FM8C020401-A02R0200000

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

M8 Circular Connector

Style

Cable assembly

Coding

A coding

Number of Positions

2Circuits

Cable Length(M)

L=2M

Electrical

Current(Max)

4A

Voltage(Max)

60V

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FM8C030401-A02E0200000

M8X1.0 A Coded 2pin, male straight single end, shielded，PUR, cable length L=2M

FM8C040401-A02R0200000

M8X1.0 A Coded 2pin, male right angle single end, shield, PUR, cable length L=2M

FM8C080401-A02E0200000

M8X1.0 A Coded 2pin, male straight with shield , PUR cable length L=2M

FM8C090401-A02R0200000

M8X1.0 A Coded 2pin, male right angle with shield, PUR cable length L=2M

FM8C110401-A02R0200000

M8X1.0 A Coded 2pin, female straight to male right angle , shield, PUR cable length L=2m

FM8C120401-A02R0200000

M8X1.0 A Coded 2pin, male straight to female right angle , shield, PUR cable length L=2m

FM8C130401-A02E0200000

M8X1.0 A Coded 2pin, female straight to male straight ，shield , PUR cable length L=2M

FM8C140401-A02R0200000

M8X1.0 A Coded 2pin, female right angle to male right angle , shield, PUR cable length L=2m

Receptacle

FM8ST0401-A02P104D00

Front fastened M8x1.0 male Socket with section , A-Coded , 2Circuits , ST THT, with shield

FM8ST0402-A02P104D00

Front fastened M8x1.0 male Socket with section , A-Coded , 2Circuits , RA THT, with shield

FM8ST0409-A02P104D00

Front fastened M8X1.0 male Socket circle , A-Coded , 2Circuits , Through Hole solder

FM8ST0410-A02P104D00

Front fastened M8X1.0 male Socket double section , A-Coded , 2Circuits , Through Hole solder

FM8WR0320-A02P104050000

Rear fastened M8X0.5 male Socket section , A-Coded , 2Circuits，Recessed Terminal，lite Length 500mm

FM8WR0520-A02P104050000

Rear fastened M10X0.75 male Socket section, A-Coded, 2Circuits，Recessed Terminal，lite Length 500mm

FM8WT0420-A02P104050000

front fastened M8X1.0 male Socket section A-Coded, 2Circuits，Recessed Terminal，lite Length 500mm

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$6.441470

10+

$5.912460

50+

$5.383450

100+

$4.947796

500+

$4.449904

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 2

MOQ： 2

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}

Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}

Lead time： In stock {{product.leadDate}}
