FM8C040401-A02R0200000

Download page

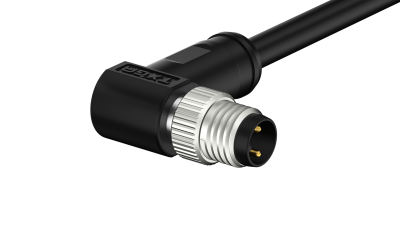

M8X1.0 A Coded 2pin, male right angle single end, shield, PUR, cable length L=2M

Product Number：

FM8C040401-A02R0200000

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

M8 Circular Connector

Style

Cable assembly

Coding

A coding

Number of Positions

2Circuits

Cable Length(M)

L=2M

Electrical

Current(Max)

4A

Voltage(Max)

60V

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FM8C010401-A02E0200000

M8X1.0 A Coded 2pin, female straight single end, shielded，PUR, cable length L=2M

FM8C020401-A02R0200000

M8X1.0 A Coded 2pin, female right angle single end, shield , PUR, cable length L=2M

FM8C050401-A02E0200000

M8X1.0 A Coded 2pin, female straight with shield , PUR cable length L=2M

FM8C060401-A02R0200000

M8X1.0 A Coded 2pin, female right angle with shield, PUR cable length L=2M

FM8C110401-A02R0200000

M8X1.0 A Coded 2pin, female straight to male right angle , shield, PUR cable length L=2m

FM8C120401-A02R0200000

M8X1.0 A Coded 2pin, male straight to female right angle , shield, PUR cable length L=2m

FM8C130401-A02E0200000

M8X1.0 A Coded 2pin, female straight to male straight ，shield , PUR cable length L=2M

FM8C140401-A02R0200000

M8X1.0 A Coded 2pin, female right angle to male right angle , shield, PUR cable length L=2m

Receptacle

FM8SR0317-A02S104W00

Rear fastened M8X0.5 female Socket circle , A-Coded , 2Circuits , solder

FM8SR0318-A02S104W00

Rear fastened M8X0.5 female Socket with double section , A-Coded , 2Circuits , solder

FM8SR0517-A02S104W00

Rear fastened M10X0.75 female Socket circle , A-Coded , 2Circuits , solder

FM8SR0518-A02S104W00

Rear fastened M10X0.75 female Socket double section , A-Coded , 2Circuits , solder

FM8ST0503-A02S104D00

Front fastened M10X0.75 female Socket with section , A-Coded , 2Circuits , ST THT, with shield

FM8ST0504-A02S104D00

Front fastened M10X0.75 female Socket section , A-Coded , 2Circuits , RA THT, with shield

FM8ST0507-A02S104D00

Front fastened M10X0.75 female Socket circle , A-Coded , 2Circuits , ST THT, with shield

FM8ST0508-A02S104D00

Front fastened M10X0.75 female Socket circle , A-Coded , 2Circuits , RA THT, with shield

FM8ST0511-A02S104D00

Front fastened M10X0.75 female Socket circle , A-Coded , 2Circuits , ST THT, without shield

FM8ST0512-A02S104D00

Front fastened M10X0.75 female Socket with section , A-Coded , 2Circuits , ST THT, without shield

FM8ST0812-A02S104D00

Front fastened M12X1.0 female Socket with section , A-Coded , 2Circuits , ST THT, without shield

FM8WR0321-A02S104050000

Rear fastened M8X0.5 female Socket circle , A-Coded , 2Circuits，Recessed Terminal，lite Length 500mm

FM8WR0322-A02S104050000

Rear fastened M8X0.5 female Socket section , A-Coded , 2Circuits，Recessed Terminal，lite Length 500mm

FM8WR0521-A02S104050000

Rear fastened M10X0.75 female Socke circle A-Coded, 2Circuits，Recessed Terminal，lite Length 500mm

FM8WR0522-A02S104050000

Rear fastened M10X0.75 female Socket section, A-Coded, 2Circuits，Recessed Terminal，lite Length 500mm

FM8WT0517-A02S104050000

front fastened M10X0.75 female Socke circle A-Coded, 2Circuits，Recessed Terminal，lite Length 500mm

FM8WT0518-A02S104050000

front fastened M10X0.75 female Socke section A-Coded, 2Circuits，Recessed Terminal，lite Length 500mm

FM8WT0718-A02S104050000

front fastened M12X1.0 female Socke section A-Coded, 2Circuits，Recessed Terminal，lite Length 500mm

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$6.172144

10+

$5.665253

50+

$5.158362

100+

$4.740923

500+

$4.263849

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 2

MOQ： 2

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}

Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}

Lead time： In stock {{product.leadDate}}

The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
