FM8ST0504-A02S104D00

Download page

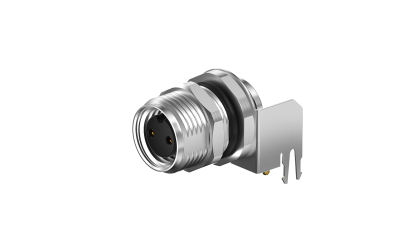

Front fastened M10X0.75 female Socket section , A-Coded , 2Circuits , RA THT, with shield

Product Number：

FM8ST0504-A02S104D00

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

M8 Circular Connector

Features

Standard

Style

Socket

Gender

Female

Coding

A coding

Shielded

Shielded

Number of Positions

2Circuits

Contacts Type

socket

Thread Spec

M8

Orientation

Right angle(90°)

Colour

Black

Electrical

Current(Max)

4A

Voltage(Max)

60V

Contact Resistance

3 mΩ Max

Insulation Resistance

100 MΩ Min

Withstanding Voltage

1500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

Fastening Method

Nut

Mounting Style

Through hole

Durability (Mating Cycles Max.)

100

Material

Surface Treatment

Plating

Plating

Gold plated

Plating Thickness

0.1μm

Material-Resin

PA66

Flammability Rating

UL94 V-0

Material of Housing

Metal

Locking Material

Metal

Packaging

Packaging

Tray

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FM8C030401-A02E0200000

M8X1.0 A Coded 2pin, male straight single end, shielded，PUR, cable length L=2M

FM8C040401-A02R0200000

M8X1.0 A Coded 2pin, male right angle single end, shield, PUR, cable length L=2M

FM8C080401-A02E0200000

M8X1.0 A Coded 2pin, male straight with shield , PUR cable length L=2M

FM8C090401-A02R0200000

M8X1.0 A Coded 2pin, male right angle with shield, PUR cable length L=2M

FM8C110401-A02R0200000

M8X1.0 A Coded 2pin, female straight to male right angle , shield, PUR cable length L=2m

FM8C120401-A02R0200000

M8X1.0 A Coded 2pin, male straight to female right angle , shield, PUR cable length L=2m

FM8C130401-A02E0200000

M8X1.0 A Coded 2pin, female straight to male straight ，shield , PUR cable length L=2M

FM8C140401-A02R0200000

M8X1.0 A Coded 2pin, female right angle to male right angle , shield, PUR cable length L=2m

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
