FM8SR0517-A02S104W00

Download page

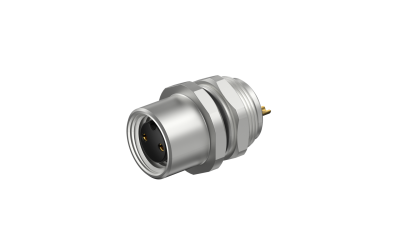

Rear fastened M10X0.75 female Socket circle , A-Coded , 2Circuits , solder

Product Number：

FM8SR0517-A02S104W00

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

M8 Circular Connector

Features

Standard

Style

Socket

Gender

Female

Coding

A coding

Shielded

Non-shielded

Number of Positions

2Circuits

Contacts Type

socket

Thread Spec

M8

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

4A

Voltage(Max)

60V

Contact Resistance

3 mΩ Max

Insulation Resistance

100 MΩ Min

Withstanding Voltage

1500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

Fastening Method

Nut

Mounting Style

Soldering

Durability (Mating Cycles Max.)

100

Material

Surface Treatment

Plating

Plating

Gold plated

Plating Thickness

0.1μm

Material-Resin

PA66

Flammability Rating

UL94 V-0

Material of Housing

Metal

Locking Material

Metal

Packaging

Packaging

Tray

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FM8C030401-A02E0200000

M8X1.0 A Coded 2pin, male straight single end, shielded，PUR, cable length L=2M

FM8C040401-A02R0200000

M8X1.0 A Coded 2pin, male right angle single end, shield, PUR, cable length L=2M

FM8C080401-A02E0200000

M8X1.0 A Coded 2pin, male straight with shield , PUR cable length L=2M

FM8C090401-A02R0200000

M8X1.0 A Coded 2pin, male right angle with shield, PUR cable length L=2M

FM8C110401-A02R0200000

M8X1.0 A Coded 2pin, female straight to male right angle , shield, PUR cable length L=2m

FM8C120401-A02R0200000

M8X1.0 A Coded 2pin, male straight to female right angle , shield, PUR cable length L=2m

FM8C130401-A02E0200000

M8X1.0 A Coded 2pin, female straight to male straight ，shield , PUR cable length L=2M

FM8C140401-A02R0200000

M8X1.0 A Coded 2pin, female right angle to male right angle , shield, PUR cable length L=2m

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$2.757594

10+

$2.539552

50+

$2.270206

100+

$2.090641

500+

$1.885425

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 100

MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}

Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}

Lead time： In stock {{product.leadDate}}

The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
