FM8C120401-A04R0200000

Download page

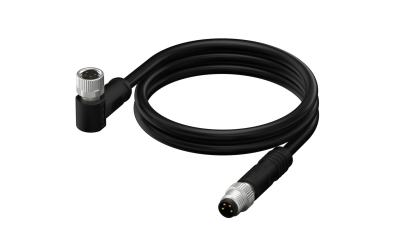

M8X1.0 A Coded 4pin, male straight to female right angle , shield, PUR cable length L=2m

Product Number：

FM8C120401-A04R0200000

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

M8 Circular Connector

Style

Cable assembly

Coding

A coding

Number of Positions

4Circuits

Cable Length(M)

L=2M

Electrical

Current(Max)

4A

Voltage(Max)

60V

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
