FM8C130401-D04E0200000

Download page

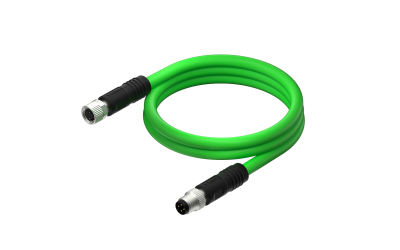

M8X1.0 D Coded 4pin, female straight to male straight , shield , PUR cable length L=2M

Product Number：

FM8C130401-D04E0200000

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

M8 Circular Connector

Style

Cable assembly

Coding

D coding

Number of Positions

4Circuits

Cable Length(M)

L=2M

Electrical

Current(Max)

4A

Voltage(Max)

63V

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FM8C010401-D04E0200000

M8X1.0 D Coded 4pin, female straight single end, shielded，PUR, cable length L=2M

FM8C030401-D04E0200000

M8X1.0 D Coded 4pin, male straight single end, shielded，PUR, cable length L=2M

FM8C050401-D04E0200000

M8X1.0 D Coded 4pin, female straight with shield, PUR cable length L=2M

FM8C080401-D04E0200000

M8X1.0 D Coded 4pin, male straight with shield , PUR cable length L=2M

FM8C130401-D04E0200000

M8X1.0 D Coded 4pin, female straight to male straight , shield , PUR cable length L=2M

Receptacle

FM8ST0401-D04P104D00

Front fastened M8x1.0 male Socket with section , D-Coded, 4Circuits , ST THT, with shield

FM8ST0402-D04P104D00

Front fastened M8x1.0 male Socket with section , D-Coded, 4Circuits , RA THT, with shield

FM8ST0503-D04S104D00

Front fastened M10X0.75 female Socket with section , D-Coded, 4Circuits , ST THT, with shield

FM8ST0507-D04S104D00

Front fastened M10X0.75 female Socket circle , D-Coded, 4Circuits , ST THT, with shield

FM8ST0512-D04S104D00

Front fastened M10X0.75 female Socket with section , D-Coded, 4Circuits , ST THT, without shield

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$12.396984

10+

$11.358813

50+

$10.442779

100+

$9.587815

500+

$8.610713

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 2

MOQ： 2

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}

Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}

Lead time： In stock {{product.leadDate}}

The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
