Where you are： TXGA Products Memory Module Socket FMC06001-F74S7153BKM1

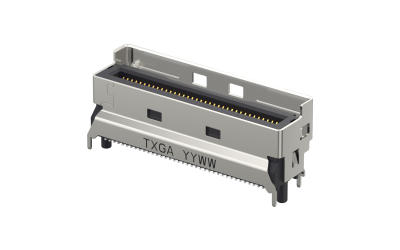

FMC06001-F74S7153BKM1
Download page
MCIO, 0.6mm, Female, 74Circuits, Vertical(180°), SMT, Black, PCIe Gen5, 12Gb/s
Product Number：
FMC06001-F74S7153BKM1
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Memory Module Socket
Product Category
MCIO
Style
Socket
Gender
Female
Version
Gen 5
Pitch
0.6mm
Number of Positions
74Circuits
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
0.5A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
300V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
 Mechanical
Mounting Style
SMT
 Material
Material-Contact
Copper alloy
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.375μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
 Packaging
Packaging
Reel
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
Memory Module Socket
Product Category
MCIO
Style
Socket
Gender
Female
Version
Gen 5
Pitch
0.6mm
Number of Positions
74Circuits
Orientation
Vertical(180°)
Colour
Black

Electrical

Current(Max)
0.5A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
300V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC

Mechanical

Mounting Style
SMT

Material

Material-Contact
Copper alloy
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.375μm
Material-Resin
LCP
Flammability Rating
UL94 V-0

Packaging

Packaging
Reel

Data Download

Product Drawings
3D Drawings
Product Specifications
EN_Spec FMC06001.pdf English Version

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{32.772127 | tradeCurrencySymbol}}
50+
{{26.644006 | tradeCurrencySymbol}}
300+
{{24.912145 | tradeCurrencySymbol}}
600+
{{22.780625 | tradeCurrencySymbol}}
2400+
{{17.451824 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 300
MOQ： 2400

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ product.price|tradeCurrencySymbol}}
Total prices： {{ product.subTotal|tradeCurrencySymbol}}
Lead time： In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FMC06001-F74S7153BKM1
MCIO, 0.6mm, Female, 74Circuits, Vertical(180°), SMT, Black, PCIe Gen5, 12Gb/s
MPQ： 300
MOQ： 2400

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
