Where you are： TXGA Products Micro-D Connector FMD001-F009BDRD-00

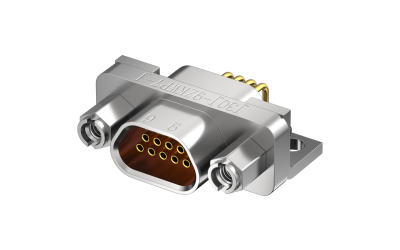

FMD001-F009BDRD-00
Download page
Micro-D connector, 9Circuits, Female, Right angle(90°), Through hole, Natural (J30J-9ZKWP7-J)
Product Number：
FMD001-F009BDRD-00
Status：
Active
Product Introduction Data Download Product Compliance Compatible Parts
Category
Product Catalog
Connectors
Product System
Micro-D Connector
Product Category
Micro-D connector
Style
Socket
Gender
Female
Pitch
1.27mm
Row Option
Dual row
Number of Positions
9Circuits
Contacts Type
socket
Orientation
Right angle(90°)
Colour
Natural
 Electrical
Current(Max)
3A
Voltage(Max)
500V
Contact Resistance
10 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
 Mechanical
Waterproof / Dustproof
No
Mounting Style
Through hole
 Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.25μm
Material-Resin
PPS
Flammability Rating
UL94 V-0
 Packaging
Packaging
Box
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
Micro-D Connector
Product Category
Micro-D connector
Style
Socket
Gender
Female
Pitch
1.27mm
Row Option
Dual row
Number of Positions
9Circuits
Contacts Type
socket
Orientation
Right angle(90°)
Colour
Natural

Electrical

Current(Max)
3A
Voltage(Max)
500V
Contact Resistance
10 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC

Mechanical

Waterproof / Dustproof
No
Mounting Style
Through hole

Material

Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.25μm
Material-Resin
PPS
Flammability Rating
UL94 V-0

Packaging

Packaging
Box

Data Download

Product Drawings
3D Drawings
Product Specifications
EN_Spec FMD FWMD Series.pdf English Version

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Compatible Parts

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{69.78225 | tradeCurrencySymbol}}
5+
{{67.88985 | tradeCurrencySymbol}}
10+
{{66.47055 | tradeCurrencySymbol}}
50+
{{65.05125 | tradeCurrencySymbol}}
100+
{{62.21265 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 10
MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ product.price|tradeCurrencySymbol}}
Total prices： {{ product.subTotal|tradeCurrencySymbol}}
Lead time： In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FMD001-F009BDRD-00
Micro-D connector, 9Circuits, Female, Right angle(90°), Through hole, Natural (J30J-9ZKWP7-J)
MPQ： 10
MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
