Where you are： TXGA Products Mini I/O Connector FMINI-SDST120-000
FMINI-SDST120-000
Download page
After clicking download, select "Save as PDF" in the printer options.

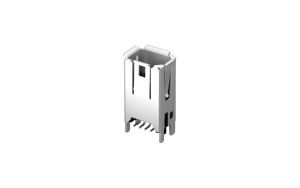

MINI IO D-shape straight female socket SMT, contact area Ep au 0.5μm, Reel package
Iteration new product: FMNTD01-F08SS716YM00
Product Number：
FMINI-SDST120-000
Status：
Discontinued
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Mini I/O Connector
Style
Socket
Gender
Female
Type
Type D
Shielded
Shielded
Number of Positions
8Circuits
Peg
With peg
Orientation
Vertical(180°)
Colour
Black
Performance Category
Cat.5e
 Electrical
Current(Max)
0.5A
Voltage(Max)
60V
Contact Resistance
40 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Data Rate
10/100/1000Base-T
 Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
1500
 Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.5μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
 Packaging
Packaging
Reel
