Where you are： TXGA → Products → Network Connector (RJ45/RJ11) → FRJ45081-2306K6K2102

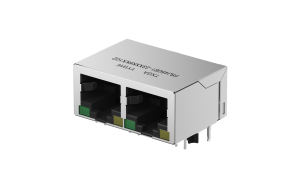

FRJ45081-2306K6K2102
Download page
RJ45 Connector 90°Angle, 2Ports, 6μ", Black, L:green, R:yellow, 1000Base-T
Product Number：
FRJ45081-2306K6K2102
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Network Connector (RJ45/RJ11)
Product Category
RJ45 Connector
Style
Socket
Port Configuration 
2Ports
Number of Positions
20Circuits
Positions/Contacts
10P8C
LED Status Indicator
L:green,R:yellow
Orientation
Right angle(90°)
Colour
Black
Contact Type
Square pin
 Electrical
Current(Max)
1.5A
Voltage(Max)
125V
Contact Resistance
50 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Data Rate
10/100/1000Base-T
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, bright tin on tail
Plating Thickness
0.15μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tray
{{item.nameEn}}
{{file.fileName}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{28.289642 | tradeCurrencySymbol}}
10+
{{26.757556 | tradeCurrencySymbol}}
50+
{{23.693385 | tradeCurrencySymbol}}
100+
{{22.161299 | tradeCurrencySymbol}}
500+
{{19.097127 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 100
MOQ： 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ product.price|tradeCurrencySymbol}}
Total prices： {{ product.subTotal|tradeCurrencySymbol}}
Lead time： In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FRJ45081-2306K6K2102
RJ45 Connector 90°Angle, 2Ports, 6μ", Black, L:green, R:yellow, 1000Base-T
MPQ： 100
MOQ： 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
