Where you are： TXGA Products Single pair ethernet (SPE) Connector FSPE-T1SST120-000

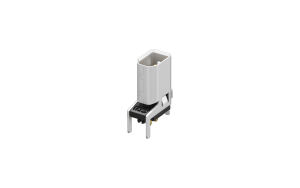

FSPE-T1SST120-000
Download page
After clicking download, select "Save as PDF" in the printer options.
SPE-T1 2pin Straight socket, terminal Ep au 0.5μm, Reel packaging
Iteration new product: FSPESS02-02S116M00
Product Number：
FSPE-T1SST120-000
Status：
Discontinued
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Single pair ethernet (SPE) Connector
Style
Socket
Gender
Male
Shielded
Shielded
Number of Positions
2Circuits
LED Status Indicator
No
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
4A
Voltage(Max)
72V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Data Rate
1Gbps
 Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP20
Mounting Style
Through hole
Durability (Mating Cycles Max.)
750
 Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.5μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Material of Housing
Metal
 Packaging
Packaging
Reel
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
Single pair ethernet (SPE) Connector
Style
Socket
Gender
Male
Shielded
Shielded
Number of Positions
2Circuits
LED Status Indicator
No
Orientation
Vertical(180°)
Colour
Black

Electrical

Current(Max)
4A
Voltage(Max)
72V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Data Rate
1Gbps

Mechanical

Waterproof / Dustproof
Yes
Ingress Protection
IP20
Mounting Style
Through hole
Durability (Mating Cycles Max.)
750

Material

Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.5μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Material of Housing
Metal

Packaging

Packaging
Reel

Data Download

Product Drawings
3D Drawings

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Prompt
This product has been assigned a new number

To avoid misuse of the old number, this page no longer supports ordering/inquiry. Please visit the new product detail page to get the latest product information.

New product number FSPESS02-02S116M00
Go to new products
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FSPE-T1SST120-000
SPE-T1 2pin Straight socket, terminal Ep au 0.5μm, Reel packaging
MPQ： 250
MOQ： 250

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
