FTB38102-F12B2GNB

Download page

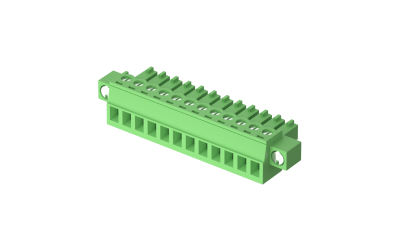

Terminal Block, 3.81mm, Plug, 12Circuits, Vertical(180°), Screw locking, Green

Product Number：

FTB38102-F12B2GNB

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Terminal Block

Style

Plug

Gender

Female

Pitch

3.81mm

Number of Positions

12Circuits

Orientation

Vertical(180°)

Colour

Green

Electrical

Current(Max)

10A

Voltage(Max)

300V

Contact Resistance

20 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

1500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

Screw locking

Material

Material-Contact

Phosphor bronze

Plating

Bright tin plated

Material-Resin

PA66

Flammability Rating

UL94 V-0

Packaging

Packaging

PE Bag

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Receptacle

FTB38109-M24B2GNB

Terminal Block, 3.81mm, Socket, 24Circuits, Right angle(90°), Through hole, Green

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$1.068169

20+

$0.877422

100+

$0.792515

500+

$0.722595

1000+

$0.655131

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 500

MOQ： 500

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}

Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}

Lead time： In stock {{product.leadDate}}
