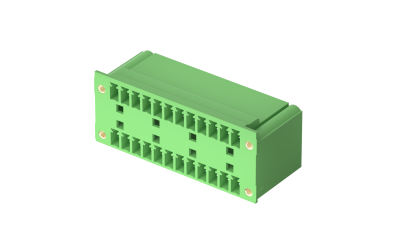

FTB38109-M24B2GNB

Download page

Terminal Block, 3.81mm, Socket, 24Circuits, Right angle(90°), Through hole, Green

Product Number：

FTB38109-M24B2GNB

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Terminal Block

Style

Socket

Gender

Male

Pitch

3.81mm

Number of Positions

24Circuits

Orientation

Right angle(90°)

Colour

Green

Electrical

Current(Max)

12A

Voltage(Max)

300V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

2500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

Through hole

Material

Material-Contact

Copper alloy

Plating

Bright tin plated

Material-Resin

PA66

Flammability Rating

UL94 V-0

Packaging

Packaging

PE Bag

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FTB38102-F12B2GNB

Terminal Block, 3.81mm, Plug, 12Circuits, Vertical(180°), Screw locking, Green

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$2.893039

20+

$2.630067

100+

$2.479747

500+

$2.345744

1000+

$2.239688

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 50

MOQ： 500

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}

Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}

Lead time： In stock {{product.leadDate}}

The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
