FUS273-FDSW1K
Download page

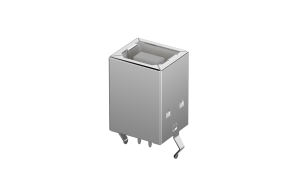

USB B-type 4Circuits, Female, 180° Vertical(DIP), White
Product Number:
FUS273-FDSW1K
Status:
Active
Category
Product Catalog
Connectors
Product System
USB Connector
Product Category
USB2.0
Style
Socket
Gender
Female
Type
Type B
Number of Positions
4Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
1.5A
Voltage(Max)
30V
Contact Resistance
30 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
USB Connector
Product Category
USB2.0
Style
Socket
Gender
Female
Type
Type B
Number of Positions
4Circuits
Orientation
Vertical(180°)
Colour
White

Electrical

Current(Max)
1.5A
Voltage(Max)
30V
Contact Resistance
30 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC

Mechanical

Waterproof / Dustproof
No
Mounting Style
Through hole

Material

Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Material-Resin
PBT
Flammability Rating
UL94 V-0

Packaging

Packaging
Tray

Data Download

Product Drawings
3D Drawings
Product Specifications

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{2.843737 | tradeCurrencySymbol}}
10+
{{2.401168 | tradeCurrencySymbol}}
50+
{{2.090429 | tradeCurrencySymbol}}
100+
{{1.949184 | tradeCurrencySymbol}}
500+
{{1.647861 | tradeCurrencySymbol}}
stock 38 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 100
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ product.price|tradeCurrencySymbol}}
Total prices: {{ product.subTotal|tradeCurrencySymbol}}
Lead time: In stock {{product.leadDate|timezoneDate}}
