Where you are： TXGA → Products → USB Connector → FUS327-FDBU1K

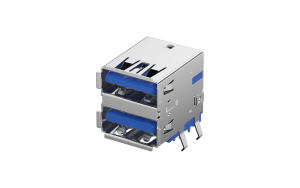

FUS327-FDBU1K
Download page
USB(3.0) A-type 9+9Circuits, Female, 90° Angle(DIP)(15μ'')
Product Number：
FUS327-FDBU1K
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
USB Connector
Product Category
USB3.0
Style
Socket
Gender
Female
Type
Type A
Number of Positions
18Circuits
Orientation
Right angle(90°)
Colour
Blue
 Electrical
Current(Max)
1.8A
Voltage(Max)
30V
Contact Resistance
50 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
 Mechanical
Waterproof / Dustproof
No
Mounting Style
Through hole
 Material
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Plating Thickness
0.375μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tray
{{item.nameEn}}
{{file.fileName}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{5.598536 | tradeCurrencySymbol}}
10+
{{5.235272 | tradeCurrencySymbol}}
50+
{{4.57285 | tradeCurrencySymbol}}
100+
{{4.273691 | tradeCurrencySymbol}}
500+
{{3.654006 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 100
MOQ： 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ product.price|tradeCurrencySymbol}}
Total prices： {{ product.subTotal|tradeCurrencySymbol}}
Lead time： In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FUS327-FDBU1K
USB(3.0) A-type 9+9Circuits, Female, 90° Angle(DIP)(15μ'')
MPQ： 100
MOQ： 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
