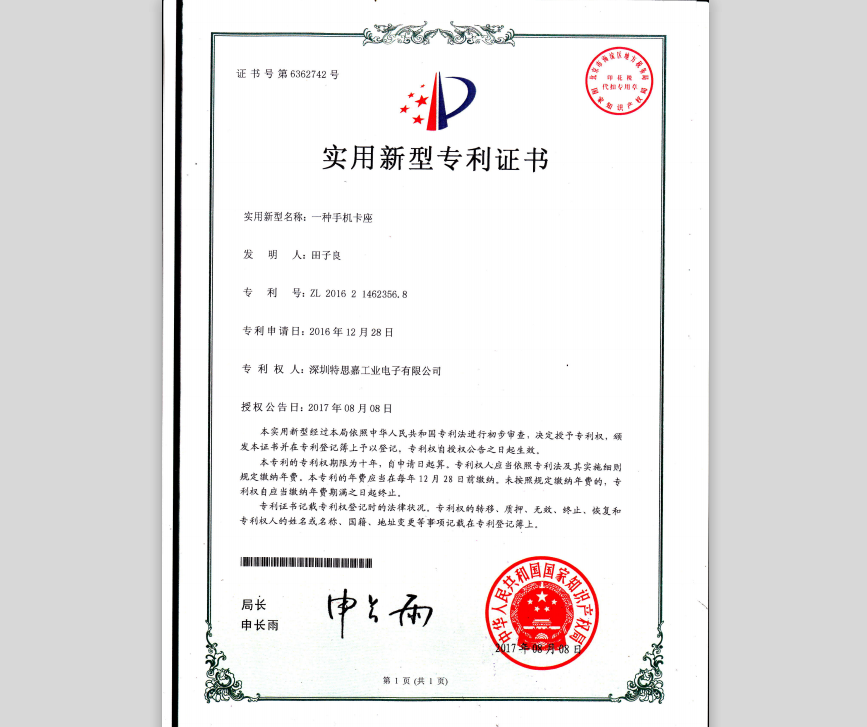

TXGA connector company received "a mobile phone socket" patent.

Inventor: tian ziliang.

Patent no. : ZL 2016 2 1462356.8

Patent application date: December 28, 2016

Patentee: shenzhen tesja industrial electronics co., LTD

Authorization announcement date: August 8, 2017

Abstract: the utility model discloses a mobile phone card holder, aiming to solve the problem that the mobile phone card holder with a hatch cover may easily cause the unstable or sliding SIM card to be placed and affect the normal use. The key points of the technical scheme are: including the bottom case and the top cover with one end rotating connection to the bottom case, and the top cover is provided with a slot for inserting SIM card. The utility model is characterized by opening the upper cover from one end of the upper cover and the lower cover card, inserting the SIM card, and rotating the upper cover downward, so that the upper cover and the lower cover can be re-stuck together, thus realizing the installation of the SIM card, which is convenient and fast. The slot has a good limit function for SIM card. Now the free movement of SIM card makes the SIM card contact with the bottom shell better, and it is not easy to affect the normal use of mobile phone. One end of the bottom case and the top cover is rotated, and the other end is connected by the card. Compared with the bottom case of the phone which cannot be opened by the top cover and the bottom case, it is not easy to cause long-term friction between the SIM card and the bottom case and affect the service life of the SIM card.

Main claim: a mobile phone card holder, including the bottom case and the upper cover, which is characterized by: the bottom case and the upper cover are connected by rotation at one end, and the other end is connected by card. The bottom shell is provided with an elastic clip joint that can realize the clamping of the upper cover and the bottom shell, and an elastic part that can move the elastic clip joint to automatically spring off the upper cover and separate the upper cover from one end of the bottom shell.
