1.25mm board socket _180° plug-in product

TXGA can be based on customer requirements to develop the corresponding line to the board connector products, the board socket 1.25mm 180° plug-in (46) product is custom, need to do pipe installation.

Name: board socket 1.25mm plug-in 180°

Number: FWF12506

RoHS:

Delivery cycle: 1 week

Type of 1.25mm board socket

Type: board socket socket 180°(this type is customized by customers and requires tube mounting)

The number: 2-16

Spacing: 1.25 mm

Product height: 4.7mm

1.25mm board socket product electrical

Rated current: 1.0A AC(RMS)

Rated voltage: 125V AC(RMS)/DC

Contact resistance: 20 m Ω Max

The insulation resistance: 100 M Ω Min

Voltage resistance: 250V AC R.M.S.

Operating temperature range: -25 ° C~+85 ° C

1.25mm board mounting socket product material

Material - metal: phosphorous bronze

Material - contact plating: tin

Material - terminal plating: tin

Material - resin: PA9T ul94v-0

Picture of 1.25mm board socket product

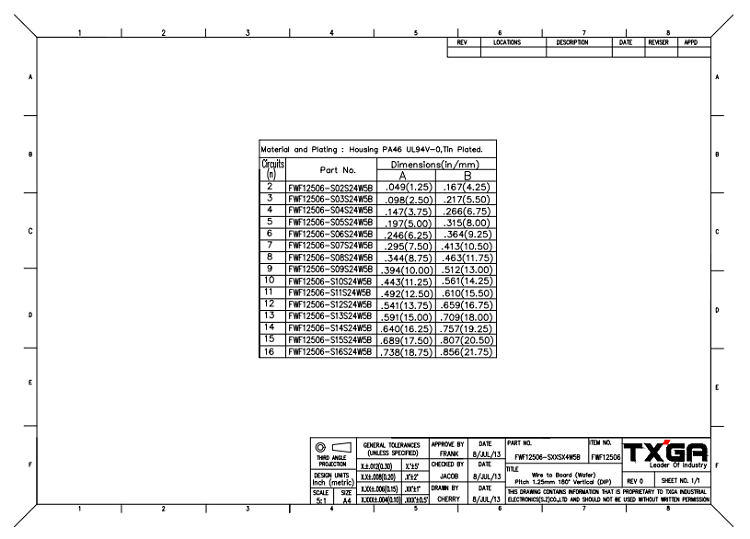

Sales drawings of 1.25mm board socket products


In the development path of more than ten years, tserja has always taken innovative and systematic connection solution provider as the long-term direction and continuously created value for partners. If you need to know about 1.25mm board socket products, please continue to pay attention to TXGA official website.
