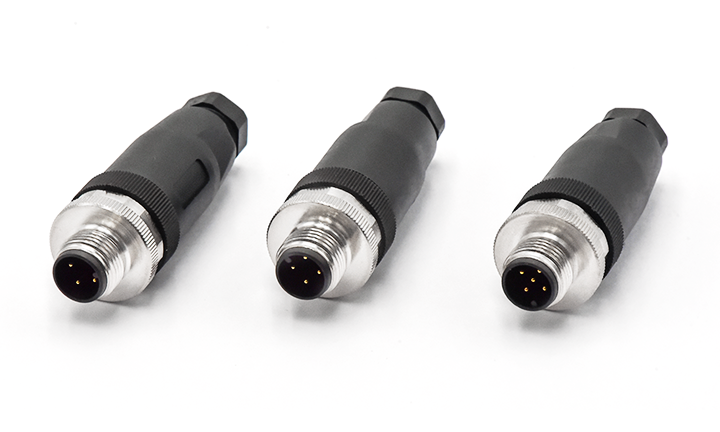

The electronic connector consists of a plug and a socket, wherein the plug is also called a free end electrical connector, and the socket is also called a fixed electrical connector. Connector installation methods include free installation, fixed installation, floating installation and PCB installation. Among them, fixed installation can be divided into three modes: front plate installation, rear plate installation and through wall installation.
1. Front plate installation refers to the installation method in which the flange edge of the connector is placed in front of the installation panel.
2. Rear plate installation refers to the installation mode in which the flange edge of the connector is placed behind the installation panel.
3. Through wall installation refers to the installation method that one end of the connector passes through the installation hole on the equipment panel, and then the connector is directly fixed and installed on the equipment panel with nuts or other methods.
Fixed connectors can also be used together with free, fixed and floating connectors to meet various fixed requirements in complex application environments. TXGA is a professional connector manufacturer, which can provide free selection guidance service to help customers choose appropriate products according to the required connector installation mode. You can contact TXGA customer service for help if you encounter any confusion when shopping. If a connector is required, enter the TXGA [Product Center].
