TXGA SIP socket provides reliable interconnection for electronic equipment under strong vibration environment

With the continuous progress of science and technology, modern electronic equipment is widely used. At the same time, the complex use environment is also easy to induce various failures of electronic equipment. In order to maintain the normal use of the equipment in the vibration and impact, the connector that constitutes a reliable electronic circuit is indispensable.

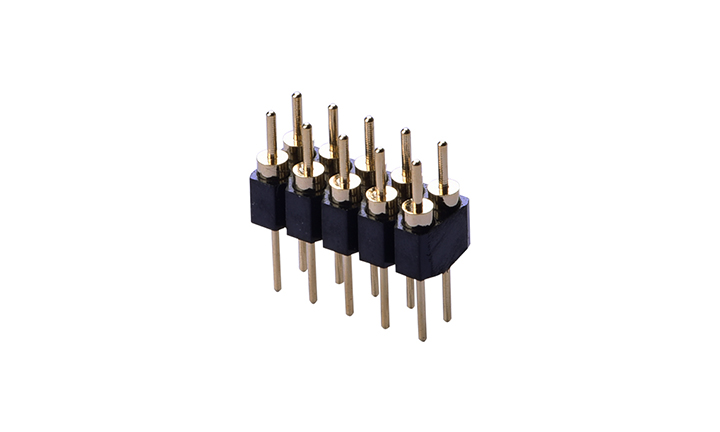

For the SIP socket developed and produced by TXGA, the female seat adopts the claw spring structure design. When the male seat pin is inserted into the female seat, several claw leaves of the female seat claw spring are elastically deformed, forming a grip on the contact pin, making the connection between the contact pin and the socket more stable. Ensure that the connector can keep the electrical contact durable and reliable under strong vibration conditions.
Maximum current per contact 3.00A
Voltage - max. 60V
Contact resistance 20 m Ω Max
Insulation resistance 1000 M Ω Min
Withstand voltage 100V AC r.m.s
The socket adopts claw spring structure, and the electrical contact is stable and reliable
Gold-plated contact, oxidation and corrosion resistance
The plugging life is more than 500 times
Can work at - 40 º C~+105 º C
