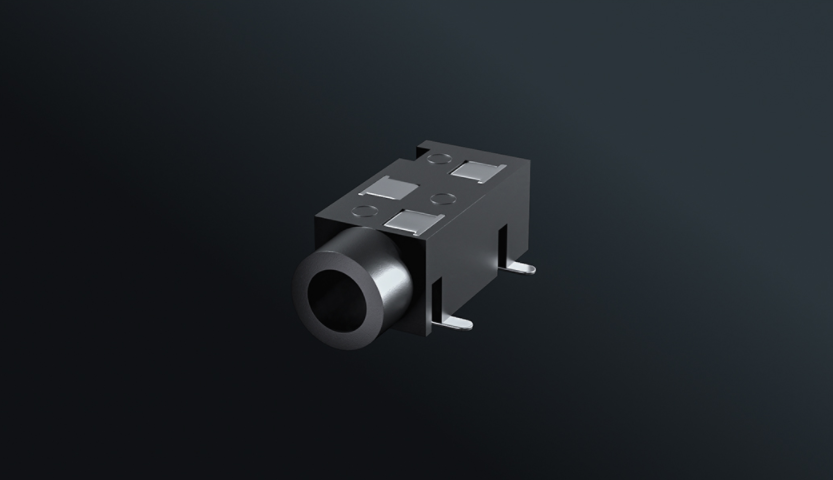

TXGA headphone socket enables more durable and stable high-quality audio signal transmission for various audio and video

The headphone socket is a socket specially used for transmitting audio signals. Unlike the natural transmission limitations of wireless headsets, wired headsets are popular with consumers because of their higher sound quality and lower delay.
In order to realize the sustained and stable high-quality transmission of audio signals, the contact resistance of the headphone socket developed and produced by TXGA is only 50 milliohm, which can effectively reduce the power consumption of the headphone and provide users with a lasting high-quality music listening experience.
performance parameter
Maximum current per contact 0.50A
Voltage - max. 30V
Contact resistance ≤ 30 m Ω Max
Insulation resistance ≥ 100 M Ω Min
Withstand voltage 500V AC r.m.s
Product advantages
3-contact design, supporting dual-channel stereo
The plugging life is more than 5000 times
The contact terminal is designed with elastic structure, which is stable and not easy to loosen
Lower contact resistance can effectively reduce the power consumption of headphones
Suitable for 3.5mm diameter earphone plug
