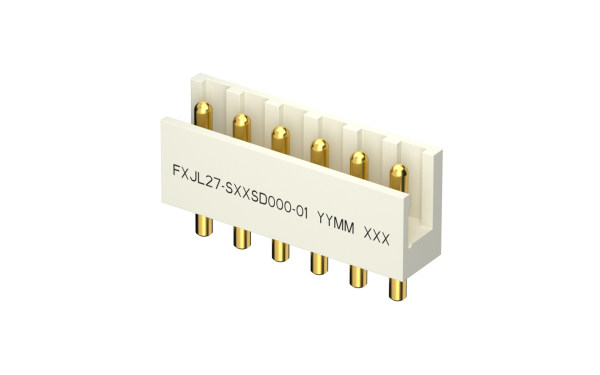

The TXGA JL27 printed circuit connector adopts an innovative multi leaf spring gold-plated socket structure, which achieves durability and reliability of electrical connection and signal transmission through tight compression contact between the pins and gold-plated brass plates. This ensures that the connector can work stably even in harsh environments.
Key performance parameters:
High current carrying capacity: The maximum current can reach 13 amperes, meeting the connection requirements of high-power devices.
High voltage tolerance: The maximum voltage can reach 250 volts, ensuring safety and reliability in various voltage environments.
Low contact resistance: The contact resistance is as low as 3.8 milliohms, effectively reducing energy loss and improving signal transmission efficiency.
Multiple connection methods:
TXGA JL27 printed circuit connector provides two socket forms, straight end and bent end, which can respectively achieve 90 ° insertion and 180 ° insertion on PCB board, meeting different design requirements. At the same time, it also provides single head and double head wiring harnesses, further expanding its application range and helping to achieve highly integrated modular design on PCB boards.
Excellent environmental adaptability and durability:
Vibration and impact: The JL27 printed circuit connector has been carefully designed to have excellent vibration and impact resistance, ensuring stable and reliable connection in harsh mechanical environments.
Airtightness: Good airtightness design effectively prevents impurities such as dust and moisture from entering, extending the service life of the connector.
Salt spray test: Passed 96 hours of salt spray test, proving its excellent corrosion resistance and suitability for various humid and salt spray environments.
Wide temperature range: It can work stably in harsh environments ranging from -55 ℃ to 125 ℃, meeting various extreme temperature application needs.
Long lifespan: With a plug-in life of over 500 times, it ensures long-term reliability.
