How to ensure stable and reliable signal transmission of connectors in complex environments such as impact, vibration, high and low temperatures, salt spray, etc?

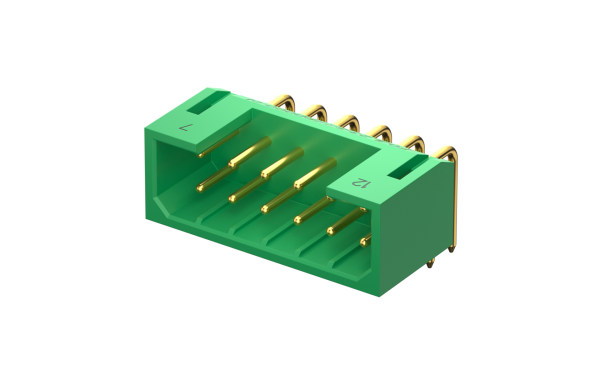

TXGA JL23 printed circuit connector with gold plated contacts of 0.1 μ m. The socket adopts a hyperbolic wire spring structure. When the male and female heads are plugged in, multiple contact points are formed between the pins and the socket, ensuring stable and reliable signal transmission of the equipment in various harsh environments.
Product Features
Anti vibration
In the vibration test with a frequency of 10Hz-2000Hz and an acceleration of 147m/s ², the instantaneous interruption time of the product is ≤ 1 μ s. The contact between the male and female terminals of the JL23 printed circuit connector remains stable, without any signal interruption or unstable connection due to vibration.
Impact resistance
In the impact test with an acceleration of 980m/s ², the instantaneous interruption time is also ≤ 1 μ s. The connector terminals can maintain a reliable interconnection state, ensuring that signal transmission is not affected.
Stable and durable
The product has a plug-in life of up to 500 times and has passed 96 hours of salt spray testing, maintaining stable performance in salt spray corrosion environments. In addition, the product supports a working environment of -65 º C~+125 º C, fully meeting the reliability and durability requirements of industrial equipment for connector environments.
Product specifications
The contact spacing is 2.54mm, and there are multiple specifications to choose from, including 6, 8, 10, 12, 16, 20, 22, 24, and 26 pins. It can meet the needs of different devices and application scenarios, providing users with more choices.
TXGA JL23 printed circuit connectors are widely used in ship electronics, instrumentation, computers, communication and other equipment.
