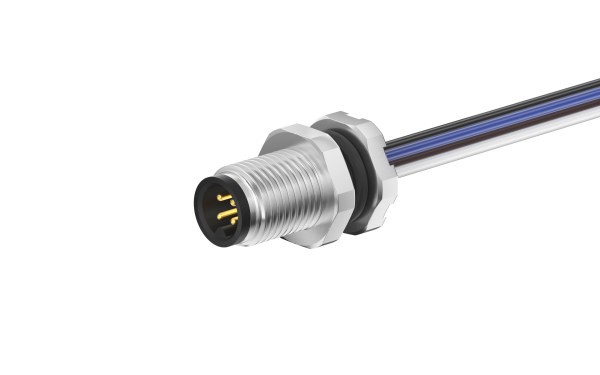

The M5 circular connector is a connector with an external thread diameter of only 5 millimeters and an extremely compact structure.
The TXGA M5 circular connector series adopts riveting wiring technology in the wiring process, ensuring stable connection between cables and terminals. The product is designed with a multi-layer sealed structure, ensuring safe operation at a water depth of up to 9 meters, fully meeting the stringent requirements for waterproof performance of underwater equipment. Moreover, the connector strictly adheres to the design specifications of DIN EN 61076-2-105-2009, providing a flexible and reliable electrical interconnection solution for miniaturized devices operating in harsh environments.
performance parameters
Current - Maximum 1A
Voltage - Maximum 60V
Contact resistance 3 m Ω Max
Insulation resistance 100 M Ω Min
Product advantages
Durable and long-lasting: able to withstand up to 100 insertions and removals
High protection: The protection level reaches IP68, the safe operation depth is 9 meters, and the waterproof performance is excellent
Standard certification: Complies with DIN EN 61076-2-105-2009 design specifications
Strong adaptability: supports operations within a temperature range of -40 º C to+105 º C
Specification Model
Available in 3-core and 4-core options
Plug types: male cable, female cable, double ended male straight cable, double ended female straight cable, double ended bent male cable, double ended bent female cable, male straight end bent female cable, female straight end bent male cable.
Socket types: Welding plate front locking male socket, Welding plate front locking female socket, Wire pressing front locking male socket, Wire pressing front locking female socket, Wire pressing rear locking male socket, Wire pressing rear locking female socket, Integrated socket.
Industry Applications
The TXGA M5 circular connector, with its own advantages, has been widely used in multiple industries, including industrial automation, sensors, drones, medical ultrasound instruments, and other equipment, providing strong support for the stable operation and efficient work of these devices.
