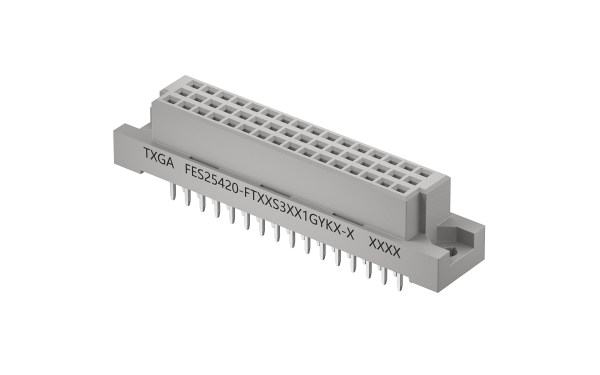

TXGA DIN 41612 connector supports high-density pin layout with multiple rows and columns, and offers multiple pin encoding options. The product complies with the IEC 60603-2 standard, with a stable structure and secure connections, and can provide stable and reliable power supply and signal transmission for industrial applications.
Product Features
structurally stable
The TXGA DIN 41612 connector is designed with a rib structure, which allows the connector to maintain excellent structural stability even in complex environments with impact and vibration.
Tightly connected
The product is designed with a harpoon shaped positioning structure on both sides, which can effectively enhance the connection strength between the connector and the PCB board after welding is completed. Even in the event of sudden situations such as violent plugging or accidental dropping, it can prevent the connection between the pins and the PCB board from becoming loose.
Flexible installation
The TXGA DIN 41612 connector provides two PCB installation methods: through-hole soldering and through-hole solder free crimping. The installation direction supports 90 ° and 180 °, providing greater flexibility for the circuit layout of industrial equipment.
Product Specifications
The contact spacing is 2.54mm, with two types of structures: double row and three row. Double row terminals support 32 and 16 pins; The three row terminal supports 48, 32, 24, and 16 pins, and has multiple pin coding options to choose from.
Application field
communication equipment
industrial control
rail transit
data center
Power Engineering
base station
