Board to board connectors are mainly divided into two types: rigid board to board connectors and floating board to board connectors. The connection between rigid board to board connectors is fixed and requires precise positioning during installation. The floating board to board connector has a certain effective connection floating space, which can move within a small range in the X, Y or Z axis directions, and has the ability to automatically absorb and correct assembly errors.

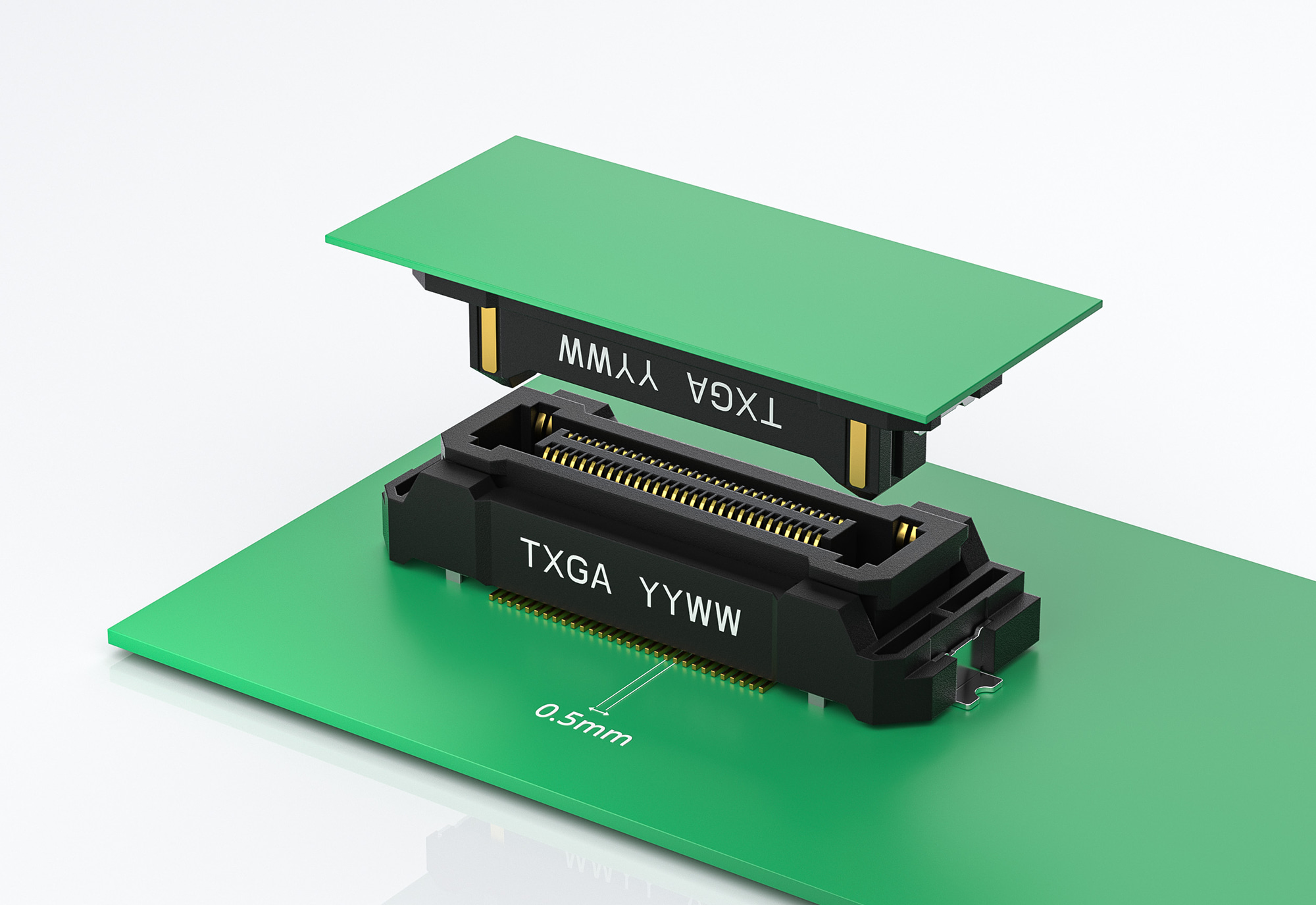

The TXGA floating board to board connector has a floating range of ± 0.7mm in the X and Y directions and ± 0.5mm in the Z direction, which can greatly absorb assembly errors. The unique elastic design and diverse product specifications not only achieve high stability of equipment interconnection in harsh environments, but also meet the layout and wiring needs of multi module equipment in different spaces.
Product advantages
1、 Anti impact vibration:
The impact and vibration generated by the external environment can easily cause connector misalignment or failure, and the TXGA floating board to board connector adopts a unique elastic design, which can alleviate the vibration and impact generated by the external environment and maintain stable connection.
2、 Plug in safety:
The maximum floating tolerance of TXGA floating board to board connectors is ± 0.7mm in the X and Y directions, and ± 0.5mm in the Z direction. When there is a positional deviation during product assembly or installation deviation between the PCB board and the product, it can effectively absorb assembly errors and ensure safe and reliable insertion.
3、 Flexible layout:
TXGA floating board to board connectors are available in 30, 60, 80, 100, and 120 digit options, with a minimum spacing of 0.5mm and a minimum combination height of 8mm, freeing up layout space and meeting the flexibility of equipment design. And the product has a certain degree of assembly adaptability, reducing the time and cost of adjustment, which can make the assembly process more convenient and easy for users.
Product Parameters:
Current (maximum): 3A
Voltage (maximum): 200V
Number of digits: 30/60/80/100/120
Center distance: 0.5mm/0.8mm
Working temperature range: -40 º C~+105 º C
Industry applications:
industrial robot
AI server
auto drive system
UAV flight control system
industrial sensor
