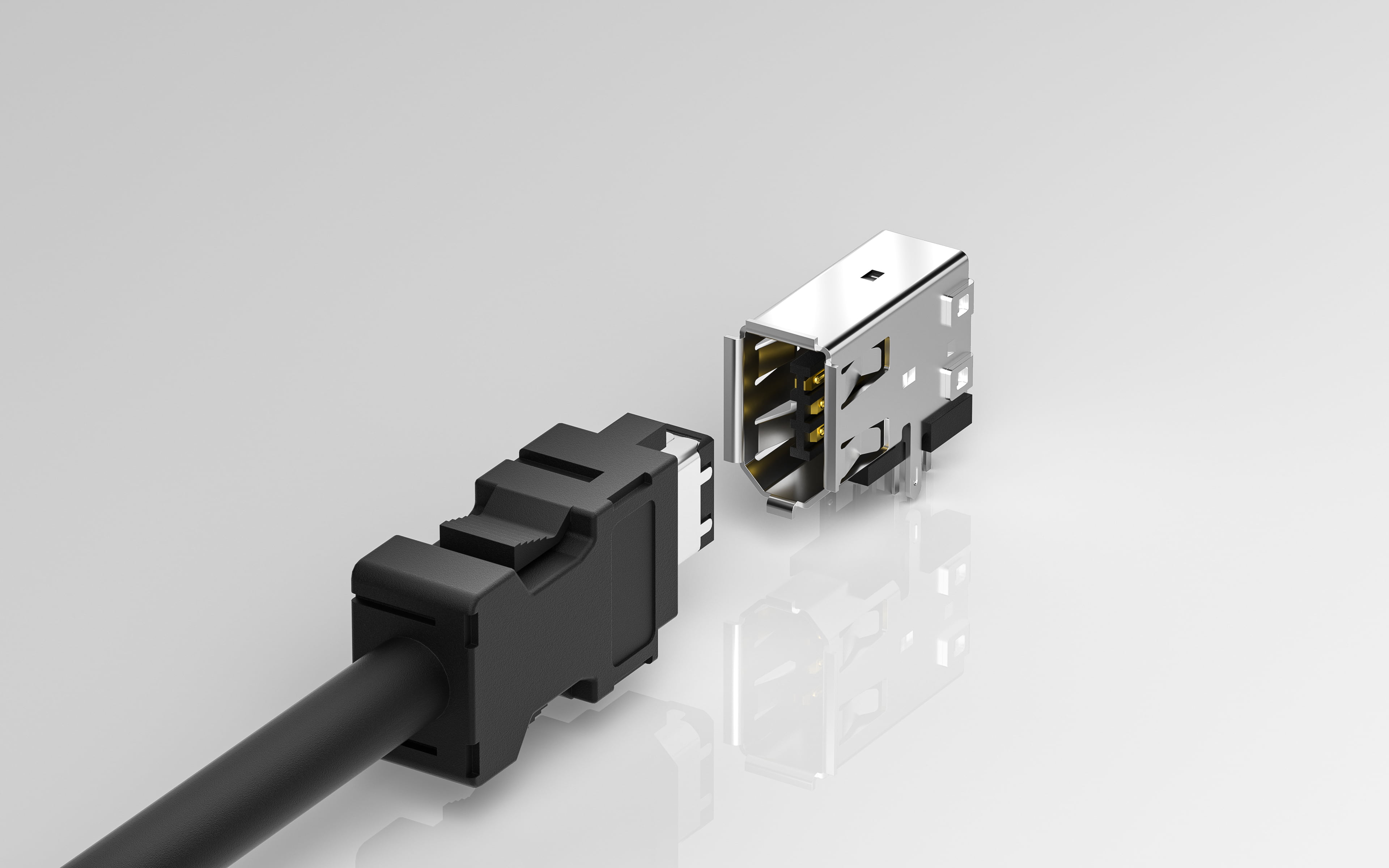

IEEE1394 connector is a multimedia high-speed data transmission interface widely used in the fields of high-speed data transmission and real-time video capture. The TXGA IEEE1394 connector adopts a six wire transmission structure, which can achieve high-speed data transmission of 400Mbps while also providing power supply for devices. This integrated design can reduce additional power lines, effectively save internal space of equipment, and make wiring more concise and efficient.
The maximum current of TXGA IEEE1394 connector can reach 1A, the maximum voltage is 30V, the contact resistance is 30 m Ω, and the insulation resistance is 1000 M Ω. These parameters ensure the stability and reliability of the connector during data transmission. The connector can also operate stably in a wide temperature range of -55 º C~+105 º C, maintaining excellent performance in both high and low temperature environments, providing strong support for the normal operation of equipment under various complex working conditions.
The unique rolled edge design of TXGA IEEE1394 connector makes the connector installation more secure, effectively preventing connection loosening caused by equipment vibration or external impact. The product offers various specifications and models such as 90 ° direct insertion, 90 ° side insertion, and 180 ° direct insertion, providing users with more choices. At present, TXGA IEEE1394 connectors can be applied to multiple industries such as oscilloscopes, logic analyzers, CNC machine tools, and industrial vision systems.
