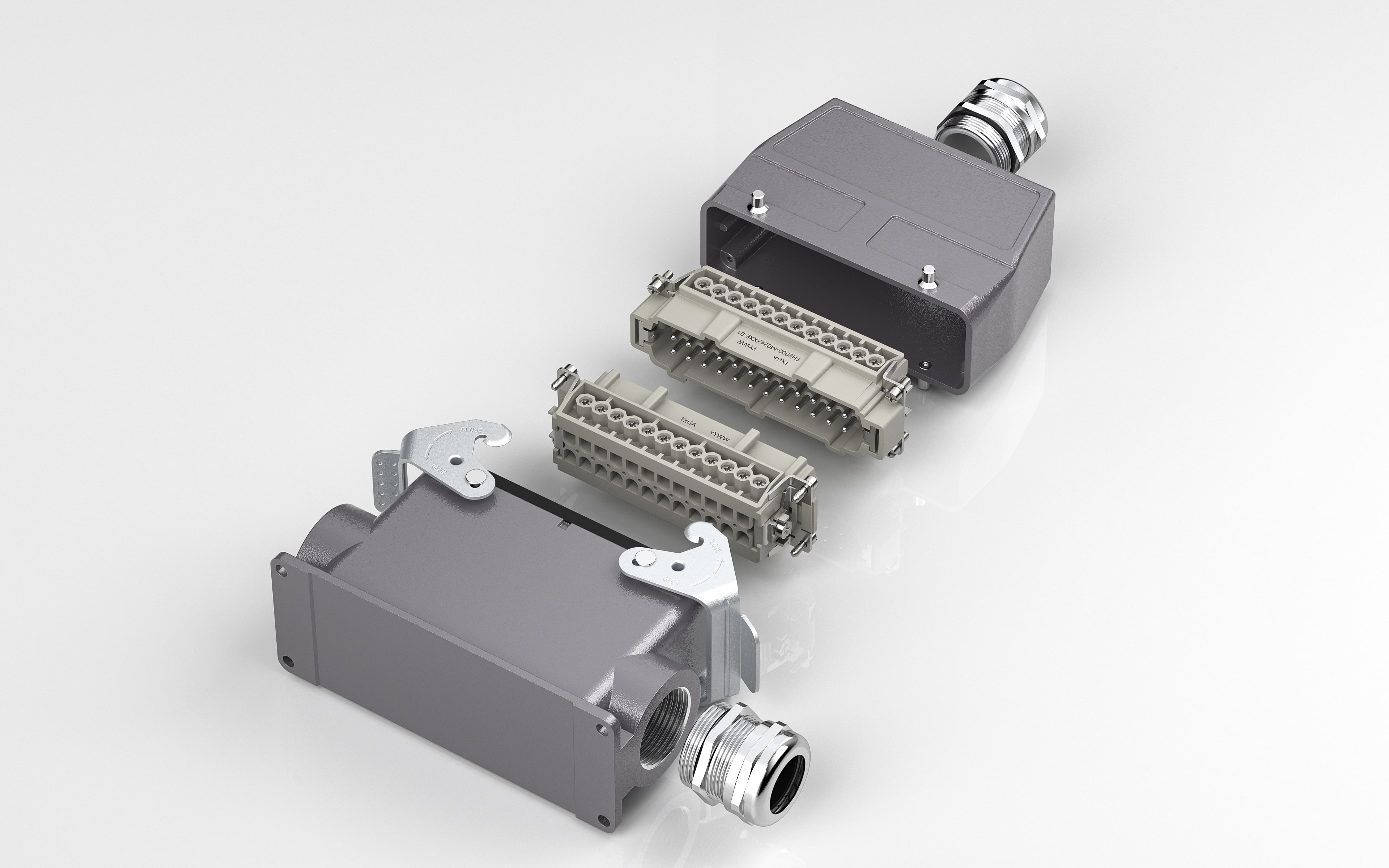

TXGA heavy-duty connector (rectangular), with high power transmission capability, voltage carrying capacity up to 1000V, current carrying capacity up to 100A, supports high-density circuit connections, and meets the needs of high-power equipment. The product has a protection level of IP65/IP68, ensuring stable operation of the equipment in extreme environments. Supports over 500 insertions and removals, suitable for frequent operation scenarios. Supports multiple wire specifications and is compatible with mainstream devices.
Product Features
High power transmission capability
The voltage carrying capacity of the connector can reach 1000V, and the current carrying capacity can reach 100A, with good electrical contact and low resistance transmission. Supports high-density circuit connections to meet the power transmission needs of high-power devices.
High protection
The product is made of UL94 V-0 flame retardant material, with a protection level of IP65/IP68 and a working temperature range of -40 º C~+125 º C. It has the characteristics of extreme high and low temperature resistance, corrosion resistance, and can prevent liquids and dust from entering. For special application scenarios in harsh environments, it can ensure long-term stable operation of the equipment.
durability
The connector socket adopts an elastic contact structure, and the contacts can automatically reset during insertion and removal, maintaining stable contact pressure. Supports over 500 insertions and removals, suitable for industrial scenarios that require frequent insertion and removal or high-intensity use.
Various specifications
Supports multiple wire gauges, with a suitable wire gauge range of 26AWG-4AWG. Provide two installation methods: screw fixation and riveting. Compatible with mainstream devices and adaptable to the connection needs of users with different devices.
Product Parameters
Number of digits: 2, 3, 4, 5, 8, 12, 24, 25 digits
Maximum number of rows: Three rows
Current (maximum): 100A
Voltage (maximum): 1000V
Protection level: IP65/IP68
Insertion and extraction times: Supports over 500 insertions and removals
Working temperature range: -40 º C~+125 º C
Application Industry
Energy and Electricity
rail transit
sensor
Industrial Heavy Machinery
Industrial robot joint drive
