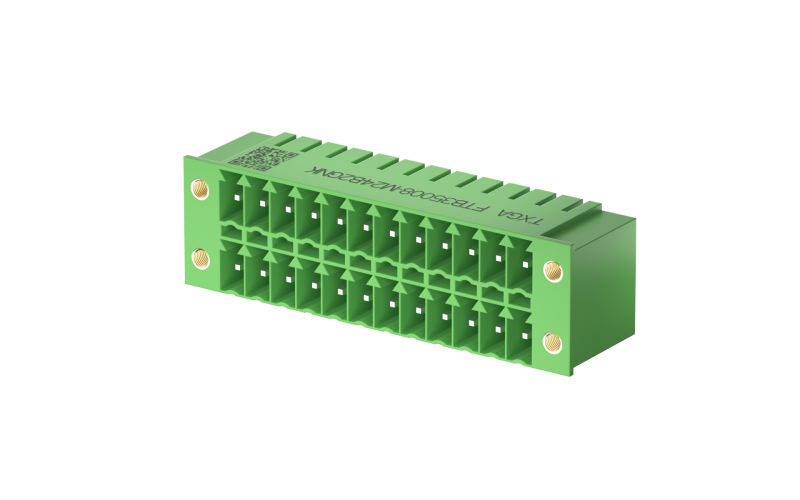

TXGA terminal blocks provide efficient and reliable electrical interconnection solutions for equipment

As an efficient PCB board-level wiring device, the terminal block assumes the core function of securing wires and distributing current, enabling rapid interconnection between wires and circuit boards. The TXGA terminal block features a high-elasticity stainless steel spring clip built into the plug wire hole. After stripping the wire, there's no need for soldering; simply inserting it completes the electrical connection, significantly reducing the installation threshold. The screw locking structure reinforces the docking between the plug and the socket, effectively resisting vibration and external forces, ensuring that the connector remains stable under complex working conditions.

performance parameters
Maximum current per contact: 12A
Voltage - Maximum 300V
Contact resistance: 20 mΩ Max
Insulation resistance: 1000 MΩ Min

Core strengths

Robust anti-loosening: The design of male and female screw fixation prevents false connection and loosening.
Durable: The stainless steel spring clip provides a constant clamping force and exhibits strong fatigue resistance.
Robust Body: PA66 resin material endows the product with excellent mechanical strength and flame retardancy.
Wide temperature adaptability: Suitable for extreme environments ranging from -40ºC to +105ºC.

Application field
TXGA terminal blocks have been widely applied in various industries such as industrial control systems, program-controlled switches, precision instruments and meters, new energy vehicles, micro sensors, and industrial cameras.
