TXGA FBH12705 ejector Box Header provides stable electrical interconnection for equipment

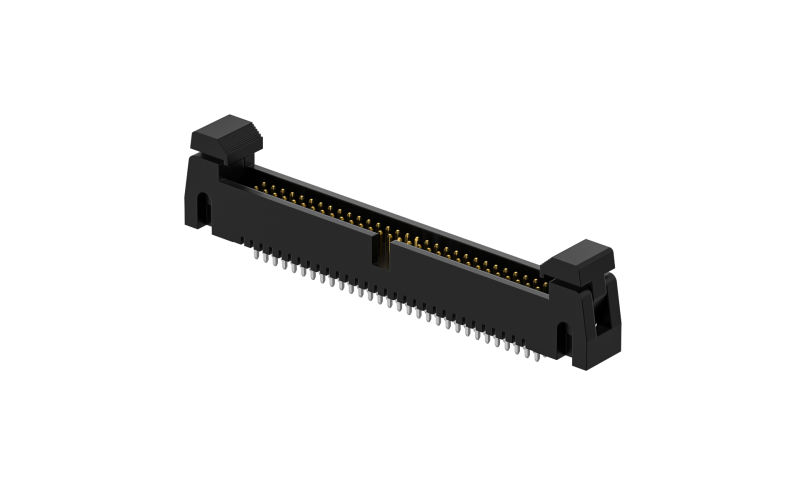

The TXGA FBH12705 ejector Box Header connector belongs to the cable-to-board connector category. Its unique ear buckle structure on both sides, named "ejector Box Header connector" due to its resemblance to an ox horn, can firmly secure the plug, significantly enhancing the stability of the insertion. Even in environments with shock and vibration, it ensures stable data transmission through the connector.

Product Features

The ox-horn shaped ear buckle structure of the connector, which ensures a stable and reliable connection, greatly enhances the stability of the connection during the mating process, providing a solid guarantee for stable and reliable data transmission of the connector in harsh environments.

The compact and flexible design features a product center spacing of only 1.27mm, allowing for flexible arrangement on PCB boards. This design is particularly suitable for miniaturized and lightweight electrical equipment, effectively saving space.

The product boasts high safety and excellent environmental adaptability, supporting an application temperature range of -40ºC to +85ºC. Additionally, its material achieves a flame retardant rating of UL94V-0, ensuring stable operation in complex and harsh application environments, fully meeting the data security transmission needs of connected devices.

Product parameters: Current (max): 1A Voltage (max): 250V Contact resistance: 20 mΩ Max Insulation resistance: 1000 MΩ Min Withstand voltage: 500V AC r.m.s Flame retardant rating: UL94 V-0

TXGA FBH12705 hook-and-loop connector, with its excellent performance, has been widely applied in multiple industries, including industrial control equipment, photovoltaic inverters, and scanning semiconductor lasers.
