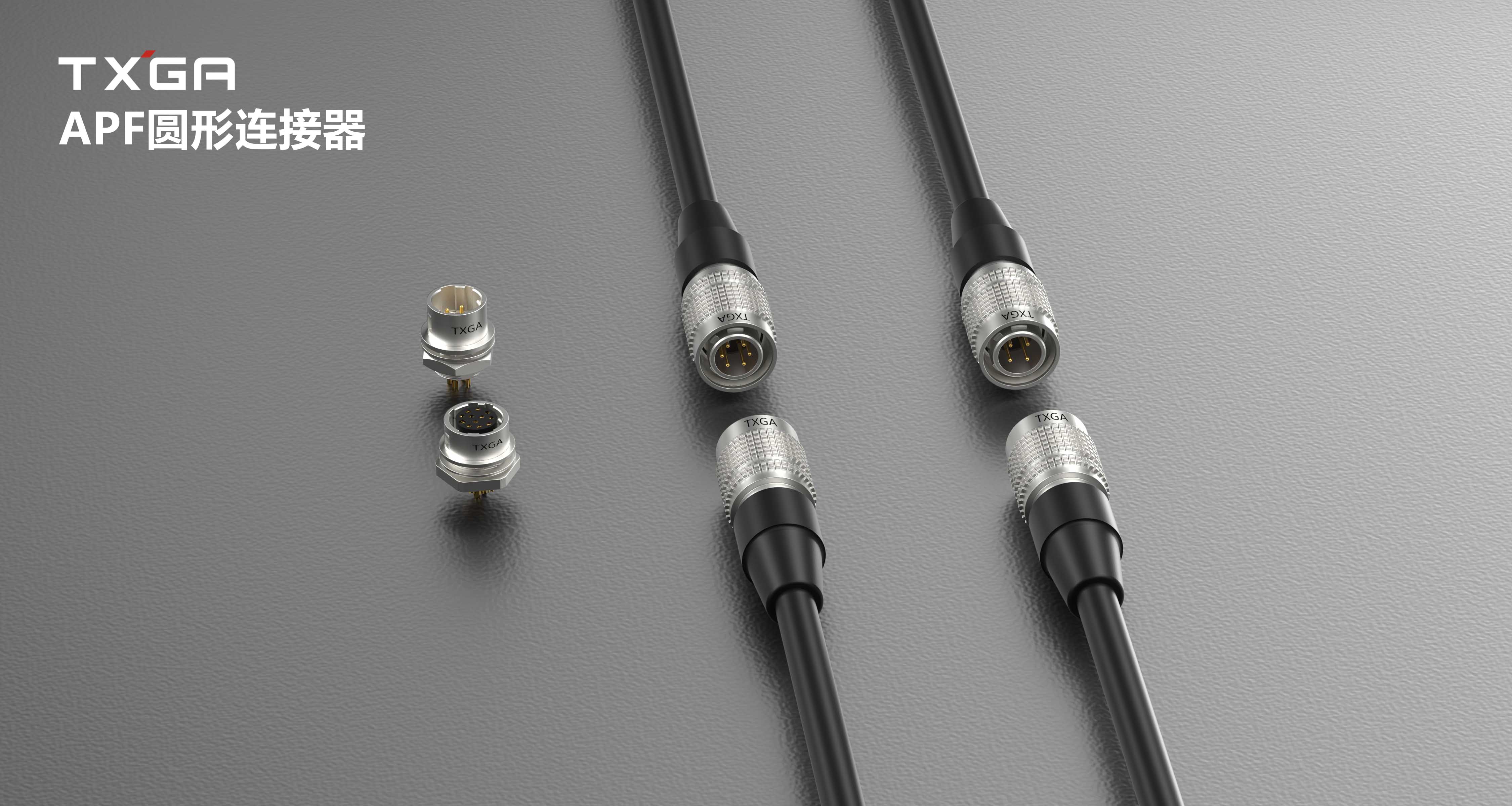

TXGA APF circular push-pull connector - featuring a self-locking structure, it is resistant to vibration and impact, effectively preventing accidental loosening!

The TXGA APF circular connector adopts a push-pull operation, which can easily and quickly complete connection and disconnection. Self locking structure ensures stable connection and prevents accidental loosening. There are two installation forms available: through-hole welding and wire bonding, with 4, 5, 6, 10, and 12 digits.

Product Features

Easy installation
The APF circular connector is connected through a push-pull operation, without the need to rotate threads or use tools, and can be easily and quickly connected and disconnected.

Reliable connection
The connector adopts a self-locking structure, which has good anti vibration and anti impact capabilities after locking, and can effectively prevent disconnection caused by pulling the cable, preventing accidental loosening.

Various specifications
The product offers four, five, six, ten, and twelve digit numbers, as well as two installation methods: through-hole soldering and wire bonding.

Product Parameters

Number of digits: 4/5/6/10/12 digits
Current (maximum): 2A
Voltage (maximum): 200V
Contact resistance: 10 m Ω Max
Insulation resistance: 100 M Ω Min
Plug and unplug times: 1000
Installation method: through-hole welding, wire bonding
Working temperature range: -25 º C~+85 º C

Application Industry

communication equipment
medical equipment
Portable wireless devices
Industrial measuring equipment
industrial sensor
