Multi-coding adaptability and high protection performance - TXGA M12 circular connectors, a key and reliable interconnection solution across multiple fields!

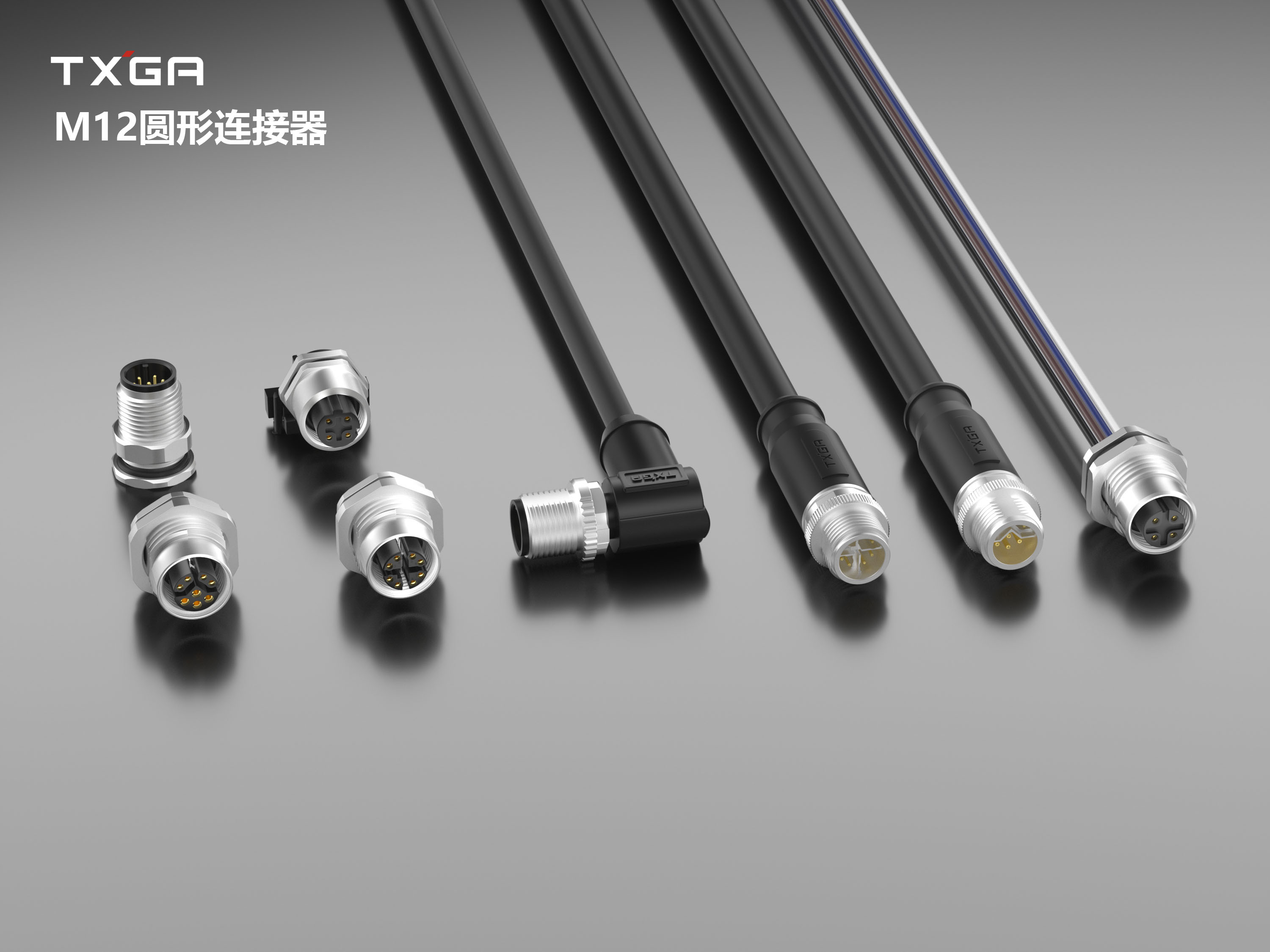

TXGA M12 circular connectors encompass A, B, D, X, and Y coding types. These five coding types offer varying bit options, adapting to diverse application scenarios and becoming a crucial and reliable interconnection solution in fields such as industrial equipment, industrial Ethernet, fieldbus, rail transit, and power equipment.

Product Features

Stable interconnection
The connector adopts a threaded connection method, which is firm and reliable after tightening the threads. It effectively resists vibration and pulling, avoiding connection loosening or falling off of the equipment in case of vibration or accidental pulling.

high protection
Once the connector is locked in place, it exhibits excellent waterproof performance, achieving a protection level of IP67/IP68, effectively preventing the ingress of liquids and dust. Furthermore, the product is capable of operating normally in extreme temperature ranges from -40℃ to +80℃, ensuring stable performance in various industrial environments, both indoors and outdoors.

Shock and vibration resistance
In vibration testing, the connector can withstand vibration conditions with a frequency range of 10 Hz to 500 Hz, an amplitude of up to 0.35 mm, or a vibration speed of 50 m/s. In terms of impact testing, it can withstand impact accelerations of up to 490 m/s², and the impact duration can reach 11 milliseconds.

transmission characteristics
In terms of data transmission performance, different encoding types have their own characteristics. Encoding A and B support DC power supply and can meet the basic industrial automation needs; Encoding D supports a transmission rate of 100 Mbps and is compatible with mainstream industrial Ethernet protocols such as PROFINET, Ethernet/IP, and Modbus-TCP; Encoding X has a data transmission rate of up to 10Gbps and supports Ethernet CAT6A; Encoding Y has a data transmission rate of up to 100Mbps and supports Ethernet hybrid CAT5, achieving power + data integration through a single cable, reducing wiring costs.

anti-interference
Connectors are available in both shielded and unshielded versions. The shielded version features a 360° full shielding design, effectively resisting EMC electromagnetic interference and ensuring high-frequency data and signal transmission.

Product Parameters

A-code
Rated current: 4A
Rated voltage: 250V
Number of digits: 2/3/4/5/6/7/8/9/10/11/12/16/17 digits
Protection level: IP67/68
Installation method: through-hole soldering/screw fixation
Temperature range: -40°C~+80°C

B-code
Rated current: 4A
Rated voltage: 250V
Number of digits: 2/3/4/5
Protection level: IP68
Installation method: through-hole soldering/panel mounting
Temperature range: -40°C to +80°C

D-code
Rated current: 4A
Rated voltage: 250V
Number of digits: 3/4/5
Protection level: IP68
Installation method: through-hole soldering/panel mounting
Temperature range: -40°C to +80°C

X-code
Rated current: 0.5A
Rated voltage: 60V
Number of digits: 8 digits
Protection level: IP67
Installation method: through-hole soldering
Temperature range: -25°C to +80°C

Y-code
Rated current: 0.5/6A
Rated voltage: 50V
Number of digits: 8 digits
Protection level: IP67
Installation method: through-hole soldering
Temperature range: -25°C~+80°C

Application Industry

A-code: actuators, network sensors, power equipment, general signals;
B-code: fieldbus devices, control system modules;
D-code: industrial Ethernet, industrial automation, rail transit;
X-code: industrial Ethernet switches, industrial robot controllers, servo drives;
Y-code: industrial Ethernet, monitoring system, rail transit, industrial automation.
