TXGA Nano-D Connector (J63A) - High Density, High Reliability, and Miniaturization

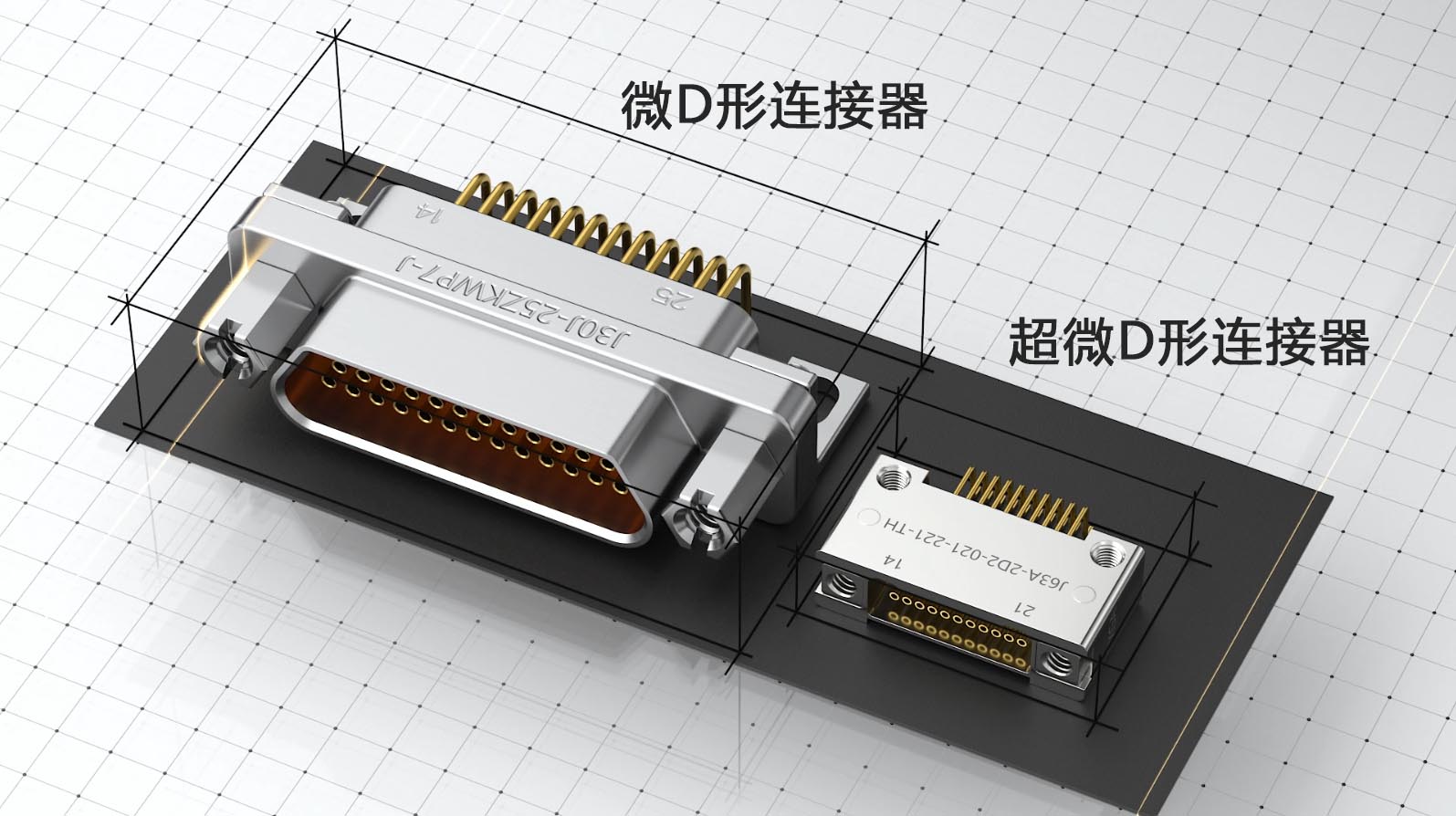

With the continuous development of industrial equipment towards high density, miniaturization, and lightweight, higher requirements have been put forward for the performance and size of connectors. TXGA Nano-D Connector (J63A) is designed to meet the high-density, high reliability, and miniaturized interconnection requirements of electrical equipment. The volume of this connector is only 50% of the traditional micro D-shaped connector (J30J), providing strong support for the miniaturization and lightweight development of equipment, and more in line with the current development needs of electrical equipment.

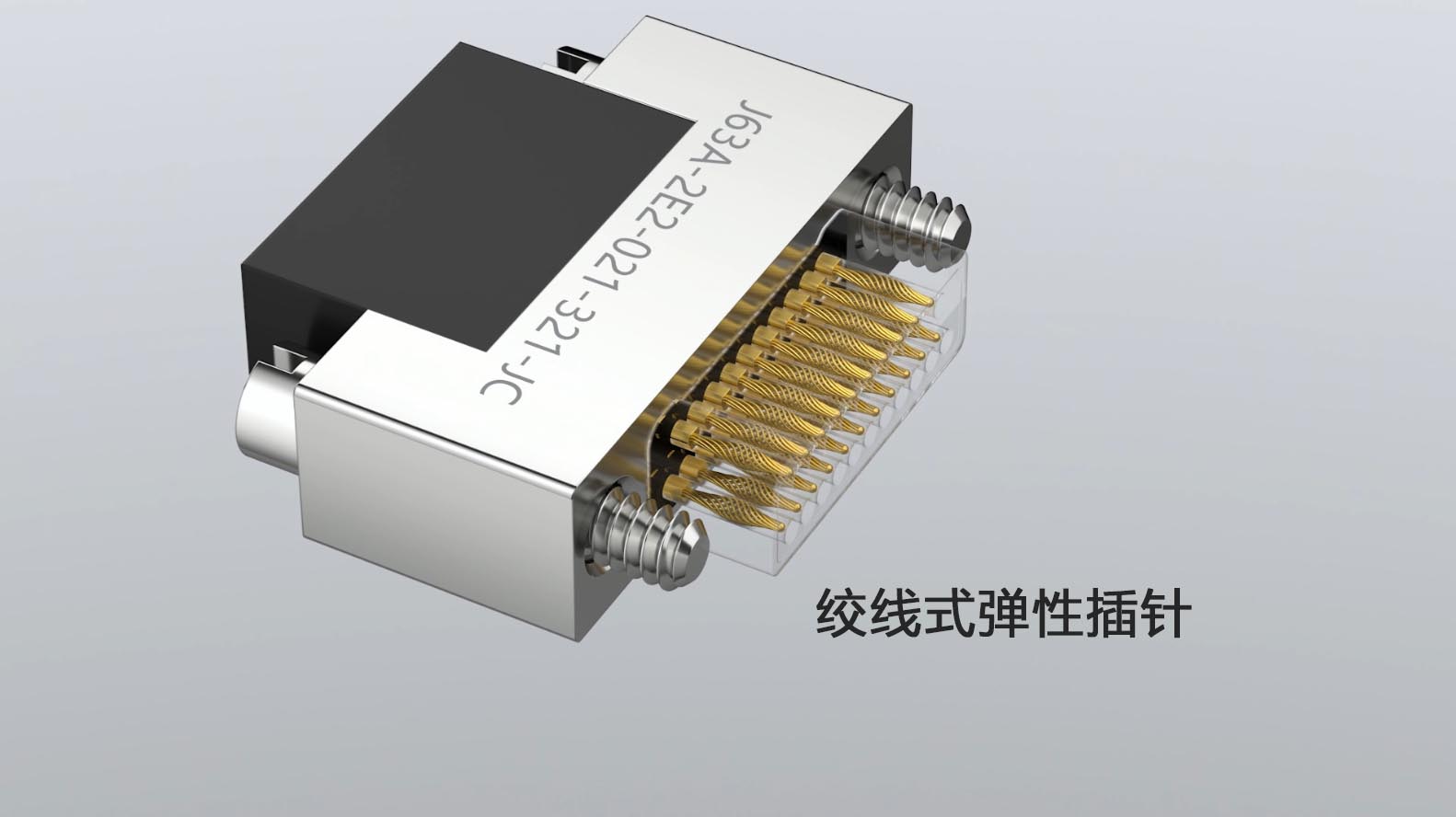

The connector adopts twisted wire elastic pin technology, reducing the contact spacing to 0.635mm, greatly enhancing the compactness of the appearance and facilitating users to interconnect in compact electrical equipment. In terms of connection stability, the connection between the plug and socket is achieved through screw rotation, which is firmly and reliably locked, ensuring the stability of equipment interconnection and effectively avoiding equipment failures caused by loose connections.

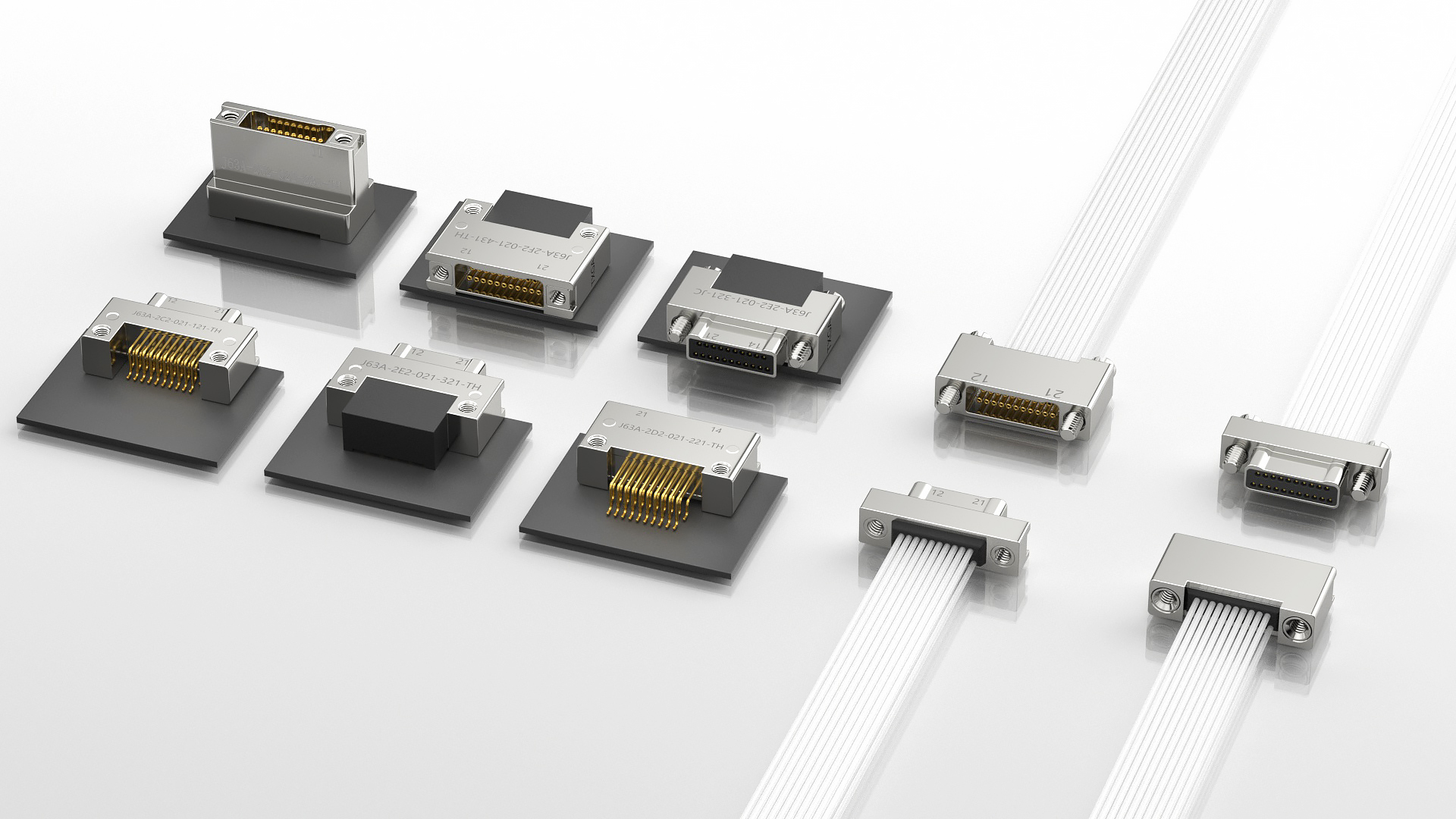

This connector not only has excellent performance in miniaturization and connection stability, but also has diversity in specifications and installation methods. We offer different digit options such as 9, 15, 21, 25, 31, 37, 51, 65, 69, etc., which can meet the connection needs of different electrical equipment. The product also supports various installation methods such as surface mount, through-hole welding, and air docking, allowing users to flexibly choose the installation method that suits them.

Environmental adaptability is also an important indicator for measuring the performance of connectors. The TXGA Nano-D Connector (J63A) has characteristics such as high and low temperature resistance, impact and vibration resistance. The product can undergo cyclic testing within the temperature range of -55 º C to+125 º C, as well as in harsh environments with vibration frequencies ranging from 10-2000HZ and accelerations of 196m/s ², and maintain a stable connection at all times. This feature can effectively ensure that the equipment can maintain a stable interconnection state in strong impact and vibration environments, greatly improving the reliability of the equipment in complex environments.

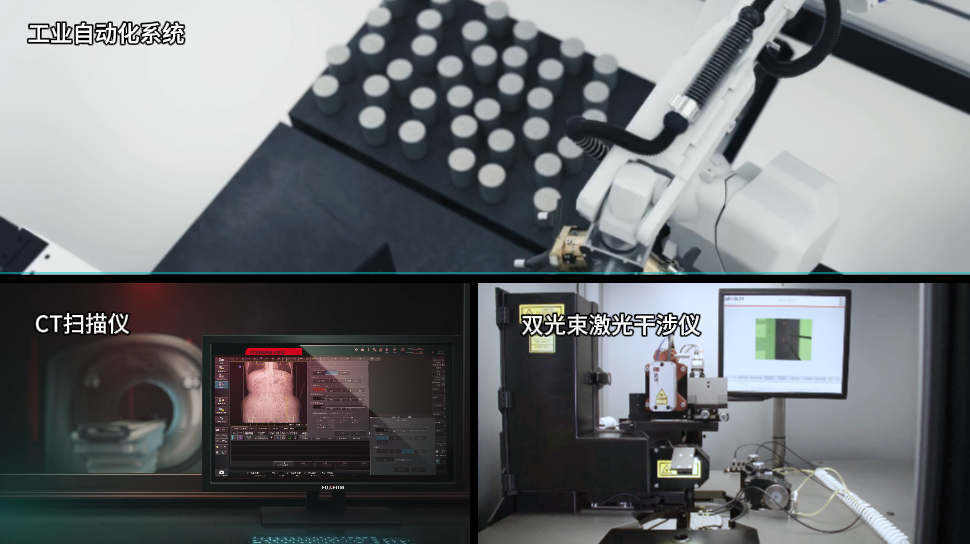

At present, the TXGA Nano-D Connector (J63A) is mainly used in harsh environments such as automation equipment, medical devices, testing and measuring equipment. Connectors, with their characteristics of high density, high reliability, and miniaturization, meet the diverse needs of various industries for electrical equipment interconnection, providing reliable connection guarantees for the miniaturization and high-density development of equipment.
