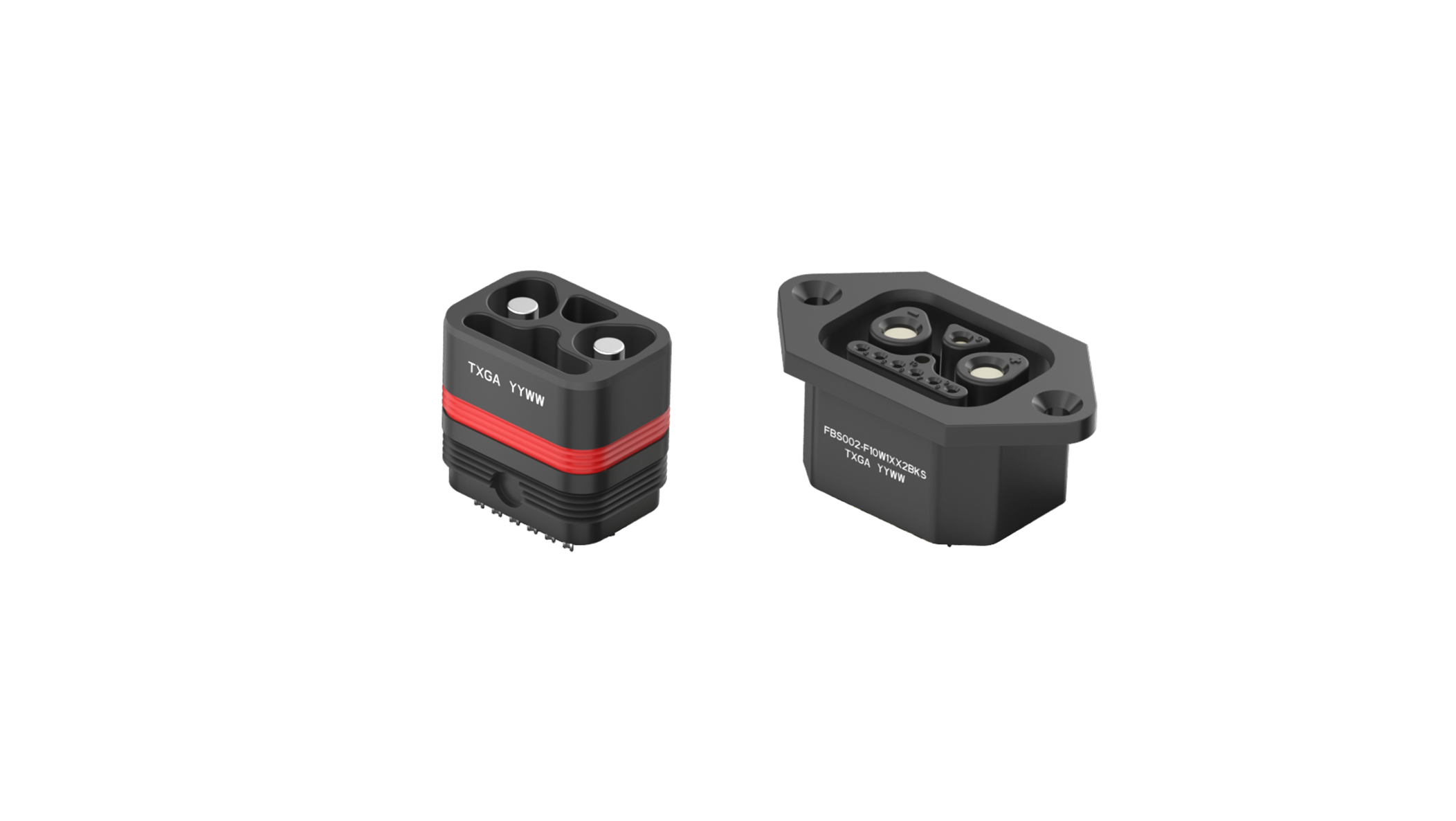

The TXGA battery swapping connector adopts a 10 bit mixed core design, configured with 7 signal contacts, 2 power contacts, and 1 ground contact. It can simultaneously complete high current power transmission, battery status data exchange, and reliable grounding protection within the same interface without the need for additional connection ports, greatly simplifying the overall wiring structure of the swapping system. The male and female seats of the product are designed with wire bonding installation, which is suitable for the wiring harness requirements in the vast majority of battery swapping scenarios. Assembly can be completed without the need for complex fixtures, and is suitable for various spatial layouts of vehicle and battery ends.
Product Features
Safety Electrical Design
The male socket of the connector supports a withstand voltage of 5000V AC r.m.s, and the female socket supports a withstand voltage of 2500V AC r.m.s, with a minimum insulation resistance of 100M Ω. From a structural perspective, it eliminates the hidden dangers of leakage and breakdown, fully meeting the electrical safety regulations in low-voltage battery swapping scenarios.
High protection capability
Meets IP68 waterproof and dustproof standards, fully resisting harsh environments such as outdoor rainy days, construction site dust, and high-pressure water spray during car washing. Even if used for a long time in outdoor power stations, it can avoid the risk of short circuits caused by water vapor and impurities.
Stable operation over a wide temperature range
The working temperature ranges from -15 ℃ to+105 ℃, ensuring stable connection performance regardless of outdoor low temperatures in extremely cold winters or high temperatures in sealed battery compartments exposed to sunlight in summer. There will be no issues such as contact failure or insulation degradation.
High plug-in life
The overall plug-in life can reach 5000 times, far exceeding the durability standard of ordinary consumer grade connectors, fully matching the operational needs of more than ten high-frequency battery exchanges per day, significantly reducing the cost of equipment maintenance and component replacement in the later stage.
Product Parameters
Number of digits: 10 digits (7+2+1)
Current (maximum): 45A
Voltage (maximum): 72V
Public contact resistance: 5 m Ω Max
Mother contact resistance: 10 m Ω
Insulation resistance: 100 M Ω Min
Public seat withstand voltage: 5000V AC r.m.s
Mother seat withstand voltage: 2500V AC r.m.s
Working temperature range: -15 º C~+105 º C
IP protection level: IP68
Durable (number of insertions and removals): 5000
